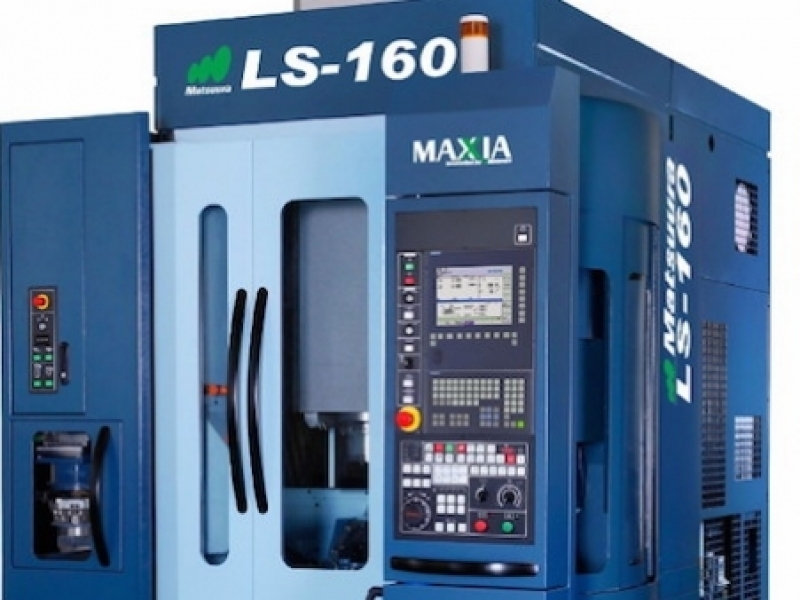

MATSUURA LS-160 (5-AXIS Vertical Machining Center) 2012

STROKE (X/Y/Z) 500/250/300 MM

X AXIS TRAVELS ...... 19.98"

Y AXIS TRAVELS ...... 9.84"

Z AXIS TRAVELS ...... 11.81"

B/C AXES DIRECT DRIVE -125 TO +125 DEG / 360 DEG

RAPID FEEDRATE (X/Y/Z) 90,000 MM/MIN

RAPID FEEDRATE (B/C) 100 MIN-1 / 200 MIN-1

WORKING SURFACE ........ 4.409" F112 MM

LOADING CAPACITY ....... 44 lbs 20 KG

MAX. WORK SIZE UP TO H= 8.4"215mm /D6.2" 160mm

H= 8.4" 215mm TO 9" 230mm : D2.36" 60mm

SPINDLE SPEED .......... 400 ~ 40,000 MIN-1

SPINDLE TAPER .......... BT #30

SPINDLE TORQUE ......... 8.68 NM / 15000 MIN-1

SPINDLE POWER .......... 7.5 / 15 KW

TOOL STORAGE CAPACITY .. 30 TOOLS

MAX. TOOL DIAMETER ..... 1.81" 46mm

MAX. TOOL LENGTH ....... 5.9" 150mm

MAX. TOOL MASS 1.5 KG
