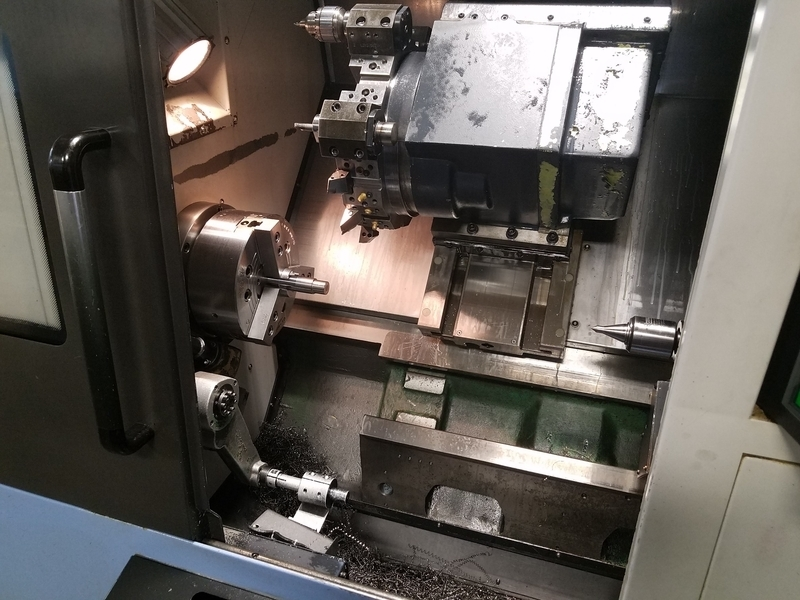

DOOSAN PUMA 240B CNC Turning Center
Have one to sell?
ConditionUsed
1 available
NEW IN: 2012
Chuck Size 8"
Max Diameter Bar Capacity 2.6"
Max Swing Over Bed / Carriage 21.7" / 15.4"
Turning Diameter (Max / Std) 13.8" / 8.3"
Distance Between Centers 26.3"
Max Machining Length 22.1"
Main Motor 25 / 20 HP AC
Spindle Speed 50 - 4500 RPM
Tools 12
Spindle Bore 3"
Spindle Nose A2-6
Spindle Torque 324 ft. lbs.
Rapid Traverse Rates (X / Z) 945 / 1200 IPM
X-Axis Travel 9.5"
Z-Axis Travel 22.8"
Turret Index (Single Step) 0.1 Seconds
Tailstock Taper MT #4
Machine Dimensions (L x W x H) 126.4" x 62.7" x 68.5"
Machine Weight 9470 lbs.
FANUC 0iTB FULL COLOR CNC CONTROL
10" Color LCD
8" Hydraulic Chuck
Parts Catcher
Programmable Tailstock Body & Quill
Automatic Tool Presetter
Servo Driven Turret
Chip Conveyor
Slant Bed Box Way Construction
