2002 HAAS SL-30
2 Axis Turning Centers

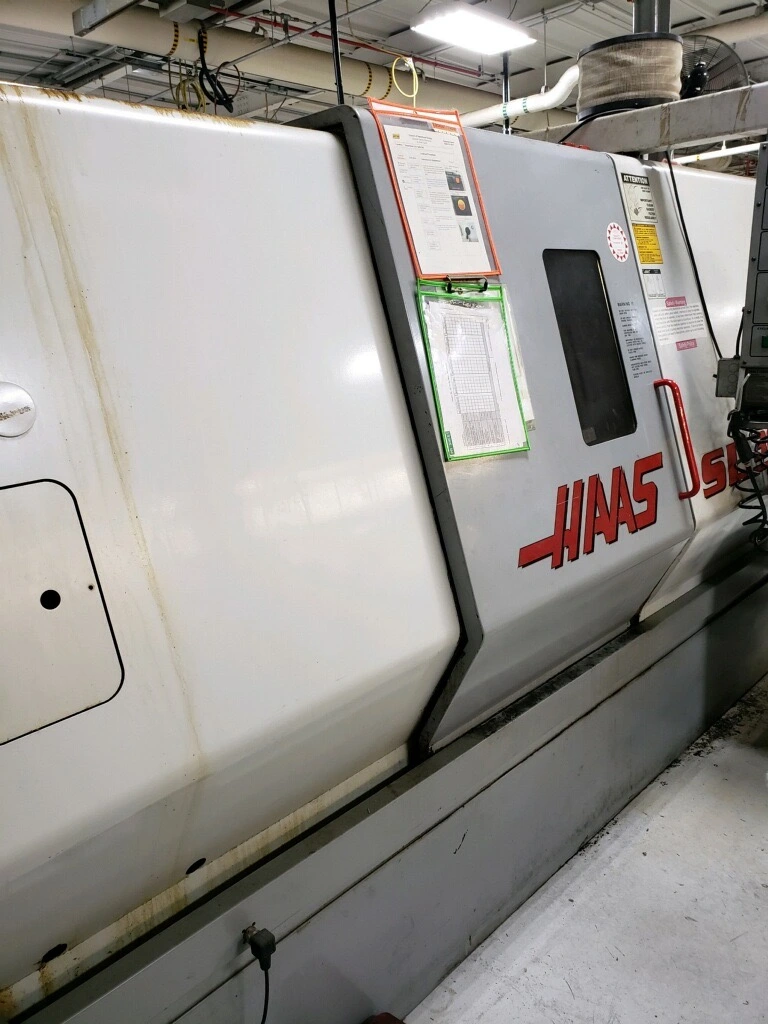

HAAS SL-30 CNC Turning Center
NEW IN: 2002
SPECIFICATIONs:
Maximum Swing Over Apron: 30"
Maximum Swing Over Cross Slide: 14.5"
Maximum Cutting Diameter: 17"
Maximum Turning Length: 34"
Distance Between Centers: 39"
X-Axis Travel: 11.3"
Z-Axis Travel: 34"
Spindle Nose / Bore / Bar Capacity: A2-6" / 3.5" / 3"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
Turret Type: 12 Positions Bolt on Type
Tailstock Travel: 33.5"
Rapid Traverse Rates: 710 IPM
Machine Dimensions LxWxH: 161" x 77" x 74"
Machine Weight: 16,000 Lbs
EQUIPPED WITH:
10" 3 Jaw Hydraulic Chuck
TOOL-Pre-setter
Programmable Tailstock
(3) Boring Bar Holders
(2) Turning Wedges
| Swing | 30" |
| Machining Length | 39" |
| # Axis | 2 |
| Chuck Size | 10" |
| Bar Capacity | 3" |
| Power | 30 hp |
| Max RPM | 20 RPM |
| Turning Dia | 17" |
| Tailstock | Yes |
