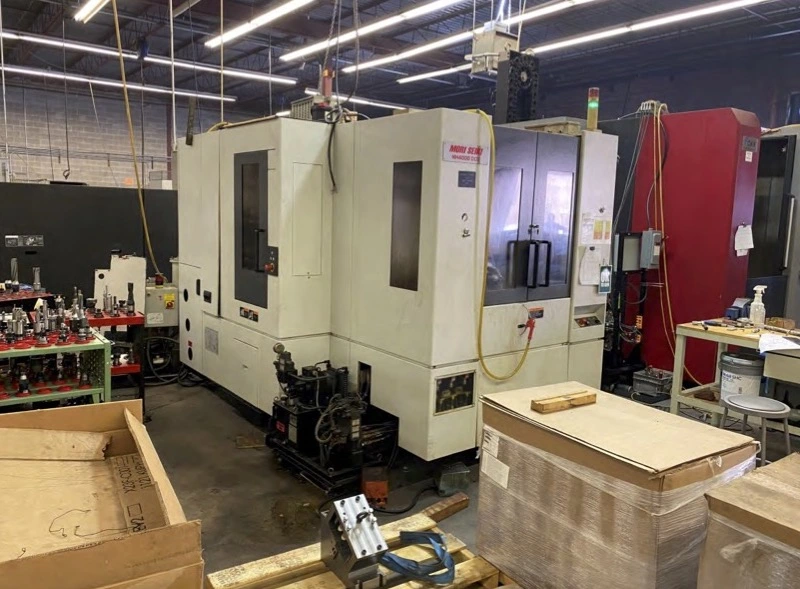

MORI 4000 HMC

Description

MORI 4000 HMC

NEW IN: 2007

SPECIFICATIONS:

Pallet Size / Number of Pallets 15.7"x15.7"/2 pallets
Table Indexing 1° Degree Rotary
Table Load Capacity 880 lbs.
X-Axis Travel 22.04" Y-Axis Travel 22.04"
Z-Axis Travel 24.8"
Spindle Nose CAT 40
Spindle Speeds 14,000 RPM
Spindle Motor 30 Min. / Cont. 25 HP / 20 HP
Tool Magazine Capacity 40 Position ATC
Max.Tool Diam./Length/Weight 5.9"/14.2"/26.4 lbs.
Tool Change Time-tool to tool 1.3 seconds
Rapid Traverse Rates 1969 IPM
Machine Dimensions 90.6"x148"x88.4"
Machine Weight 21,340 lbs.
Equipped with
1° Degree B Axis Rotary Table
Two (2 ) HAAS Programmable Rotary Table (5th Axis )
Hi Pressure Coolant Thru Spindle
Data Server
Tool Breakage Detection
Tool Probe & Parts Probe
Tool Life Management
Flood Coolant
All Available Manuals
