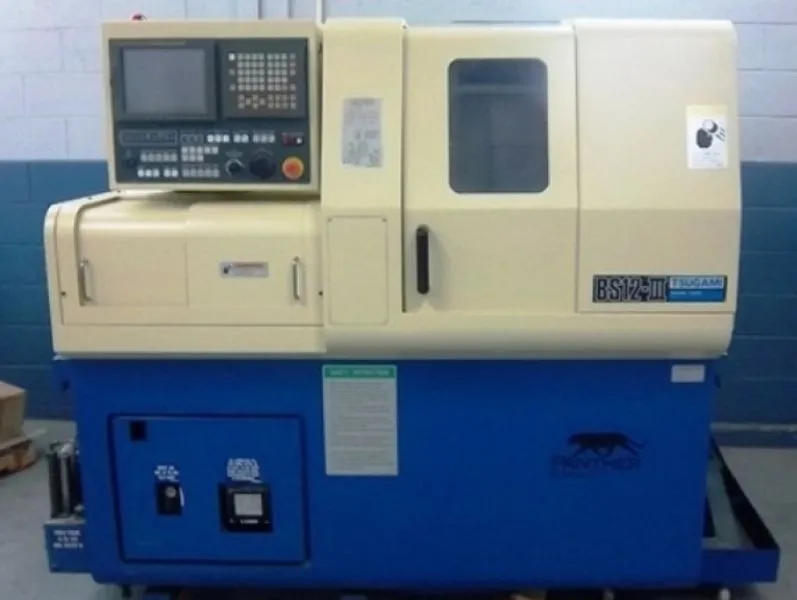

Tsugami BS-12BIII CNC Swiss Lathe 2001

Control: Fanuc 180isTA (LK1)

Controllable Axes: 5 (X1, Z1, A, X2, Z2)

Maximum Bar Diameter: 0.500 inches

Linear Ball Ways: X and Z

T Axis Brake

Z Axis Travel-Fixed Guide Bushing: 6.69 inches

-Driven Guide Bushing: 3.15 inches

Programmable Servo Axis Designations

Z Main Headstock In and Out: 5.51 inches

T1 OD Tool Slide Up and Down: 3.94 inches

X OD Tool Slide Right and Left: 1.26 inches

Y OD Tool Slide Right and Left: 1.26 inches (7-Axis Models)

Main Spindle:

Spindle Speed: 200-10,000 RPM

Spindle Indexing: C-Axis

Spindle indexing degrees: .001 deg

Horsepower: 2.2 kW

Number of Tool Stations:

7 O.D. Tools

3 Cross driven tools (200-5000 RPM)

3 I.D. Tools

3 Back working tools

Sub-Spindle:

Spindle Speed: 200-5,000 rpm

Horsepower: 2.2 kW

Indexing: 15 Deg

Weight (apprx): 4,350 pounds

Dimensions (L x W x H - approx): 66" x 43" x 66", approx
