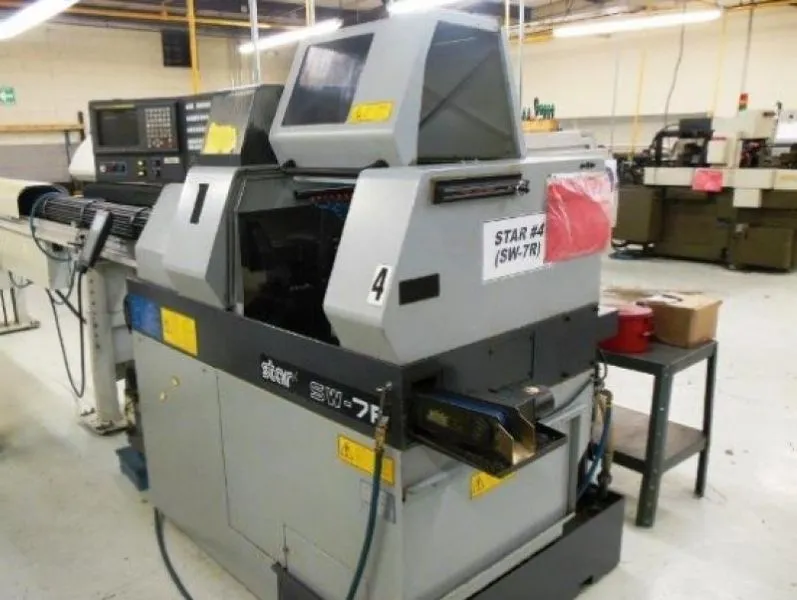

Star SW-7R CNC Swiss Lathe

Control: Fanuc 16TB

Turning Diameter: 7 mm (9/32")

Headstock Strike: 70 mm (2 3/4"-Per

1-Stroke)

Cross Mill, Drill, & Tap

Max Drilling Cpacity:

Stationary Tool: 4 mm

Power Driven Tool: 3 mm

Max Tapping Capacity:

Stationary Tool: M4 x P0.7

Pwer Driven Tool: M2.8 x P0.45

Die Cutting Cap.: M4 x P0.7

Max Milling Capacity: 6 mm

Main Spindle:

Spindle Speed: 15,000 RPM

Spindle Indexing: 0.01 Degree (Full C-Axis)

Main Spindle Motor: 2.2 kw/3.7 kw

Power-Driven Spin. Speed, X & Y Axis: 8,000 RPM (Live Tools)

Tooling:

Type: Twin gang tool Post

Live Tool Positions: 4, 2 per post

OD Turning Tool Positions: 6, 3 per post

ID Endworking Tool Positions 4

Backworking Tool Positions: 4

Sub-Spindle:

Chucking Diameter: 7 mm (9/32")

Indexing: 1 Degree

Spindle Speed: 10,000 RPM

Max Length for Front Ejection: 70mm (2 3/4")

Electrics: 200V/3 Phase/60Hz
