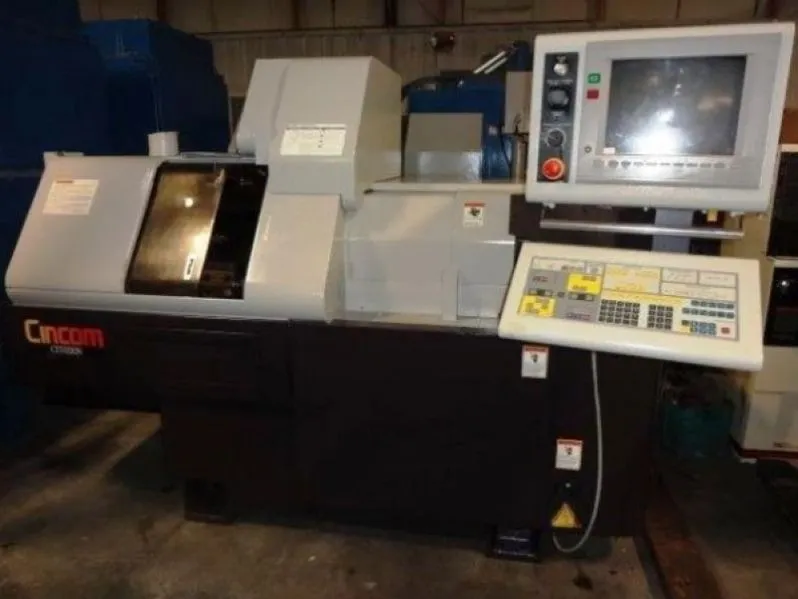

Citizen M(1)20 CNC Swiss Lathe 1997

CNC Control: Mitsubishi Meldas 530LHC

X1,X2,Z1,Z2,Z3,A2,Y1)

Max. Machining Diameter: .787" (20mm)

Max. DMchining Length per Chucking: 12.6"

Indexing:

Main Spindle: Full "C" Axis

Sub Spindle: 15 degree

Spindle Speeds:

Main Spindle Drive: 200 - 8100 rpm

Back Spindle: 180 - 7200 rpm

Rotary Tool Spindle:

Gang Plate: 250 - 5000 rpm

Turret: 320 - 6300 rpm

Backworking:

Max. Chucking Dia: .787" (20mm)

Max. Backwork Length: 4.92" (125mm)

Max. Drilling/Threading: .315" (M8)

Backworking Speed: 150 - 7200 rpm

Number of Installable Tools:

Gang Tooling: 8 tools

Turret Tooling: 10 tools

Number of Turret Indexes: 10 sets (20 sets avail.)

Tool Sizes:

Gang Tooling: 13mm x 13mm x 150mm

Turret Tooling: 10mm x 10mm x 60mm

Sleeve Size: 19.05mm diameter

Motors:

Main Spindle Drive: 3-5 HP

Rotary Tool Spindle Drive:

Gang Plate: 1/2 HP

Turret: 1/2 HP

Back Spindle Drive: 1-2 HP

Dimensions (approx.): 92.8" x 42.9" x 66.3"

Weight (approx.): 3600 lbs.
