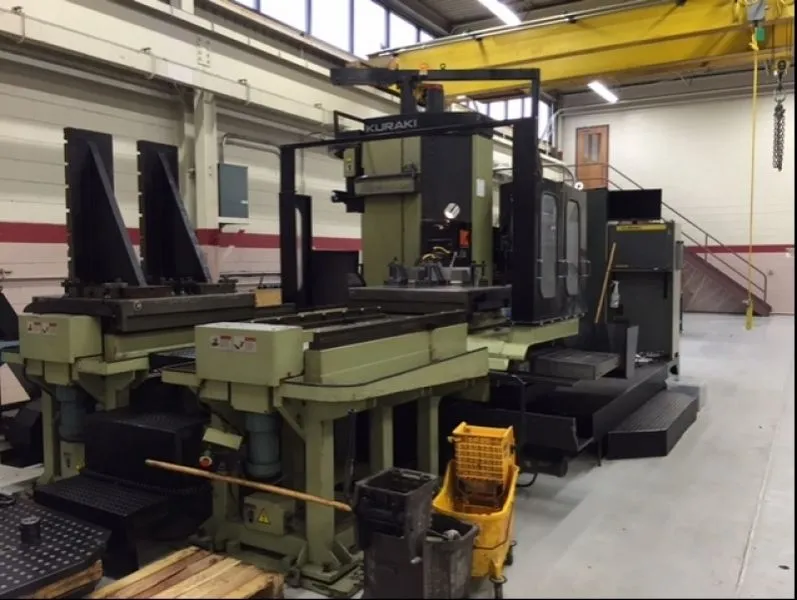

KURAKI KBT-10DX-ANP CNC Horizontal Boring Mill w/ Twin Pallets
Have one to sell?
ConditionUsed
1 available
Spindle: 4.33”
Spindle taper: BT50
Spindle speeds: 3,000 rpm
Spindle HP: 20/15
Travels: 78” x 39.37” in Y x 31.50” in Z, (59.06” nominal travel in X)
Spindle travel, W: 19.7”
Table size: 37.40” x 43.31”
Table indexing: .001”
Max. table swing: 55.12”
Max. table weight: 7,700 lbs.
Rapid travels: 472 ipm in X,Y, Z
Feed rates: 0.04”-157.48 ipm
ATC: 40
Weight for basic machine: 45,100 lbs. plus pallet system, etc.
Fanuc 15M CNC Control
3,000 RPM
Built in rotary table with .001 positioning
Two pallet stands, holding one pallet each
Two 43.31” x 37.40” pallets
Side mounted 40 place automatic tool changer with twin arm changer
Two chip augers
Chip conveyor
Coolant pan
All specifications to be verified by buyer.
Buyer responsible for disassembly.
