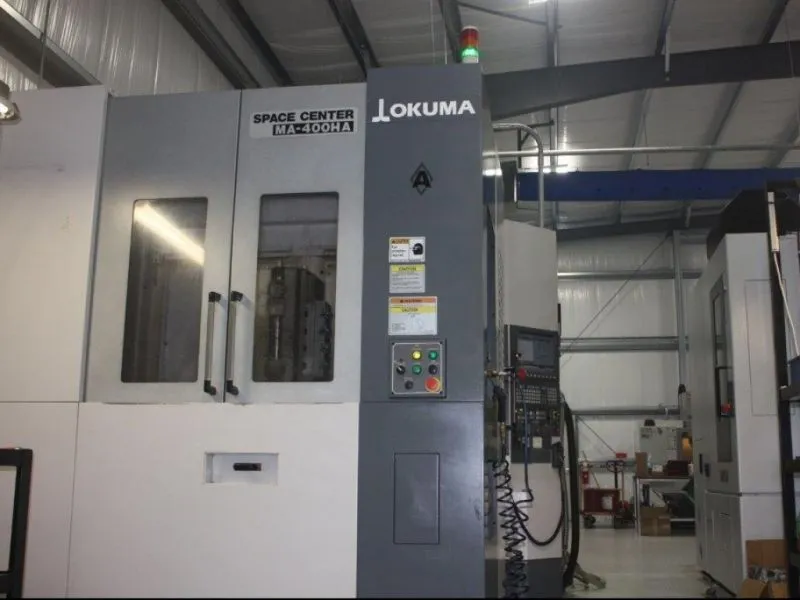

OKUMA MA400HA - Horizontal Machining Center
Have one to sell?
ConditionUsed
1 available
PALLET SIZE 15.75" (2)
Travel:
X-Axis
24.05"
Y-Axis
22.01"
Z-Axis
24.61"
Pallet Index
.001 Degrees
Spindle Speed
50 - 15,000 RPM
Spindle Taper
Cat 40
Spindle Motor
20 HP
Spindle Center to Table Top
1.97" - 25.98"
Spindle Nose to Table Center
3.35" - 27.95"
Tools
60
Rapid Traverse Rates (X, Y & Z)
2362 IPM
Pallet Load Capacity
880 lbs.
Max Tool Diameter
3.94" / 5.91"
Max Tool Length
11.8"
Max Tool Weight
7.4 lbs.
Max Workpiece Dia / Height
23.62" / 27.95"
Machine Dimensions (L x W x H)
178" x 95" x 108"
Machine Weight
25,080 lbs.
OSP P-200M CNC CONTROL
12" Color TFT
USB Port
PC/MCIA Interface
60 Tool Magazine
Fourth Axis Rotary Table
Renishaw Touch Probe (MP700)
Rigid Tapping
Renishaw Auto Tool Length Measurement
Coolant Thru Spindle (1000 psi ChipBlaster)
Mayfran Concept 2000 Microfine Chip Conveyor (Rear Exit)
Remote Manual Pulse Generator
Three Color Tower Light
