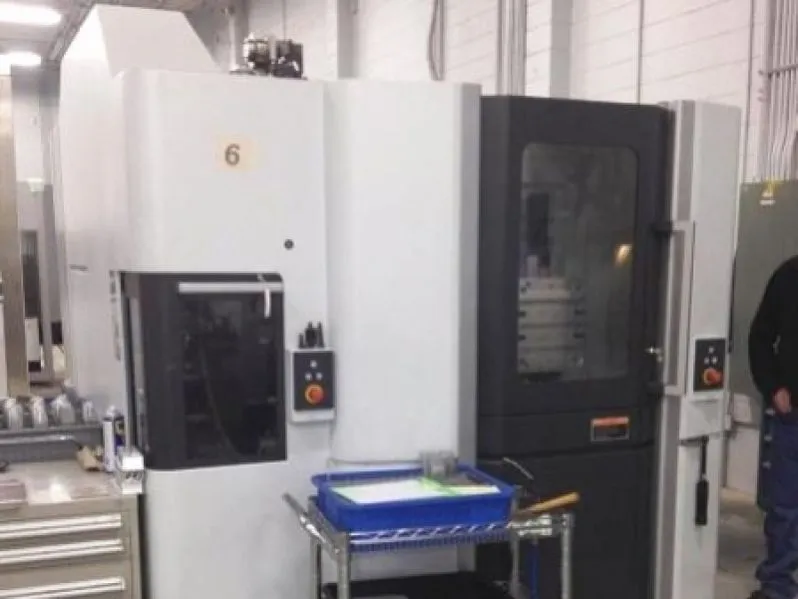

MORI SEIKI-NHX-4000 2012
Have one to sell?
ConditionUsed
1 available
Pallet Size / Number of Pallets:
15.7" x 15.7" / 2 plts.
Table Indexing:
.001 Degree Rotary
Table Load Capacity:
880 lbs.
Pallet Index Time:
1.49 seconds
X-Axis Travel:
22"
Y-Axis Travel:
22"
Z-Axis Travel:
26"
Spindle Nose:
CAT # 40
Spindle Speed:
12,000 RPM
Spindle Speed Ranges:
1 Range
Spindle Motor:
40 HP
Maximum Part Size (D x H):
24.8" x 35.4"
Tool Magazine Capacity:
60 Position ATC
Maximum Tool Length/Weight:
15.7" / 17.6 lbs.
Rapid Traverse Rates:
2362 IPM
Machine Dimensions:
107.1" x 165.9" x 108"
Machine Weight:
18,000 lbs.
Full 4th Axis Rotary Table
60 Station Tool Changer
Coolant Through Spindle
Prepped for High Press. Coolant Thru Spindle
Chip Conveyor Rear-w/ Drum Filter & Cyclone
Renishaw OMP 60 Spindle Mounted Probe
Tool Presetter Probing
High Output 40 HP Motor
Direct Scale Feedback for X, Y, and Z Axes
300 Coordinate Systems
600 Meter of Memory
Extended Macro Variables
Oil Cooler
Tool Life Management
Flood Coolant
Rigid Tapping
Helical Interpolation
Wired 220 Voltage
MADE IN JAPAN
2436 Operation Hours as of 1/24/14
1598 Spindle Run Hours as of 1/24/14
