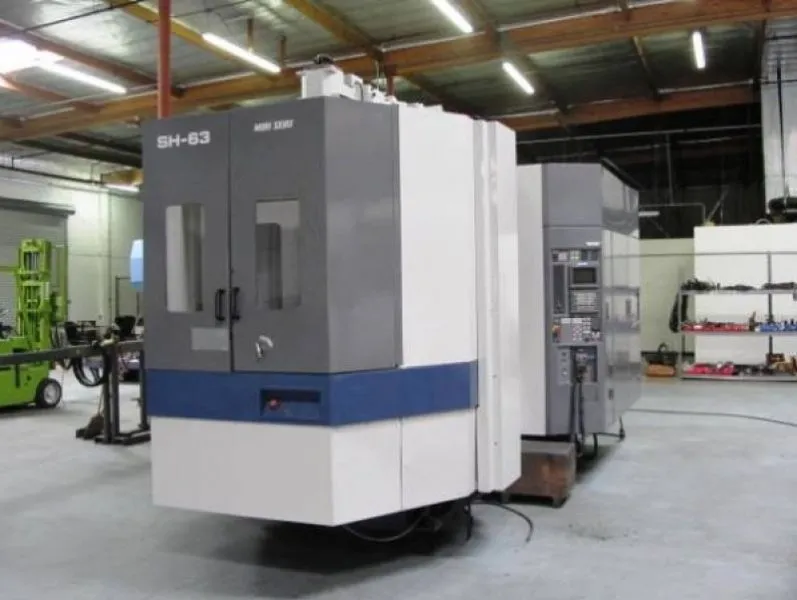

Mori Seiki SH-63 HMC 1996

PALLETS (2) 24.8” X 24.8”

LOAD CAPACITY 2640 LBS

PALLET CHANGING TIME 15 SEC.

TABLE INDEXING TIME 2.3 SEC.

TABLE INDEXING 1-DEGREE

CUTTING FEEDRATES 0.01-630 IPM

RAPID TRAVERSE RATE XYZ 1260/IPM

SPINDLE NOSE TO TABLE CENTER 5.9” – 39”

SPINDLE CENTER TO TABLE TOP 2” – 31.9”

X AXIS TRAVEL 33.1”

Y AXIS TRAVEL 29.9"

Z AXIS TRAVEL 33.1"

CUTTING FEEDRATES 0.01-630 IP0M

RAPID TRAVERSE RATE 1260 IPM ON XYZ

SPINDLE RANGE 10,000 RPM

SPINDLE TORQUE 310.5 FT LBS

SPINDLE TAPER CAT 50

SPINDLE MOTOR 40 HP

TOOL CHANGE 60 ATC

MAX. TOOL LENGTH 19.6”

MAX. TOOL WEIGHT 66 LBS

APPROX DIMENSIONS 218” X 124.88” X 126.18 (LWH)

MACHINE WEIGHT 40,700 LBS
