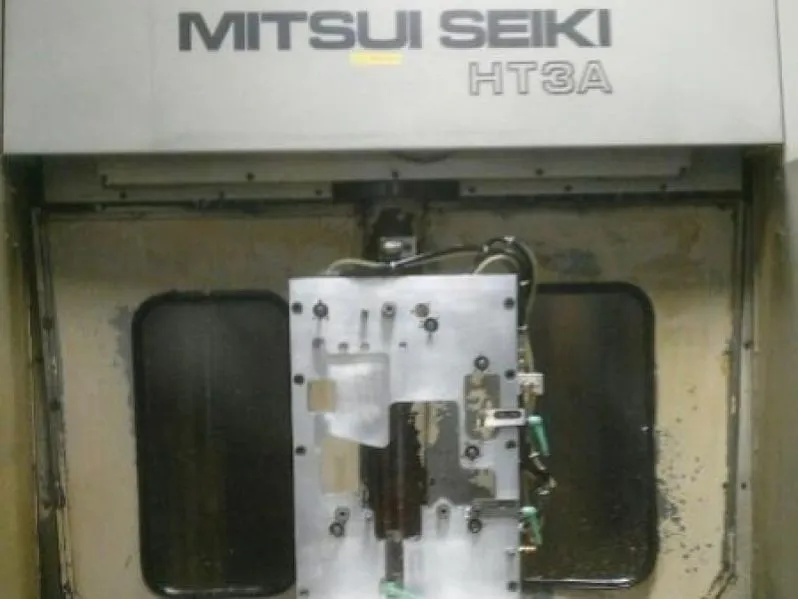

Mitsui Seiki HT3A Horizontal Machining Center 1993

DUAL PALLET.............. 15.75" X 15.75"

(X)...................... 21.65"

(Y)...................... 19.68"

(Z)...................... 21.65

DISTANCE SPINDLE AXIS TO TOP SURFACE OF PALLET: 5.9" - 25.59"

DISTANCE SPINDLE END TO PALLET CENTER.. 4.72"- 24.4"

MAIN DRIVE MOTOR..........20HP

SPINDLE TAPER.............40

SPINDLE SPEED.............10-12,000 RPM

MAX PALLET LOAD...........882 LBS

RAPIDS X, Y, & Z..........945 IPM

CUTTING FEEDS........... .039-394 IPM

NUMBER OF TOOLS.......... 90

MAX TOOL LENGTH.......... 11.81"

MAX TOOL WEIGHT.......... 22 LBS

MACHINE WEIGHT APPROX.... 22,046 LBS.
