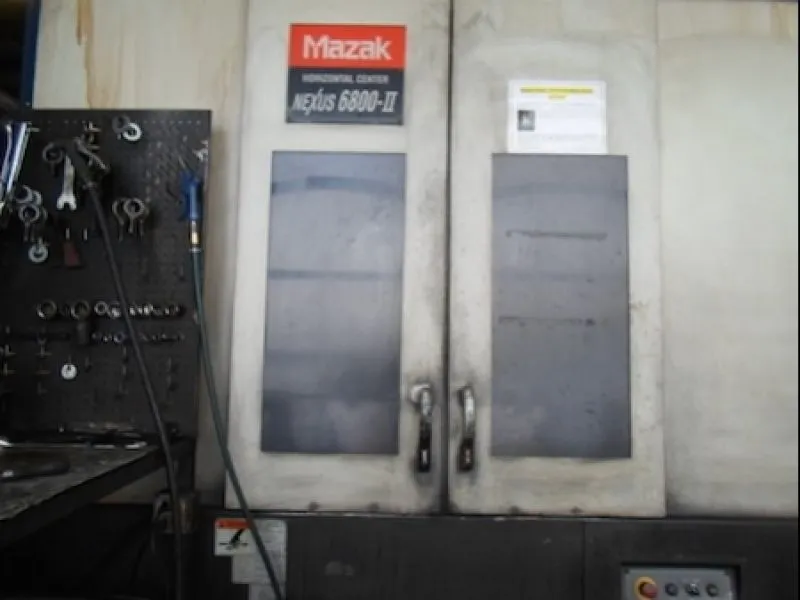

MAZAK HCN-6800-II Horizontal Mach. Ctr. 2007
Have one to sell?
ConditionUsed
1 available
Table Size 24.8 X 24.8"
Max. Workpiece Dia 41.34
Max. Workpiece Height 51.18
X Axis Travel 41.34"
Y Axis Travel 35.34"
Z Axis Travel 38.58"
Dist. spindle center to table top 3.94" to 39.37"
Dist. spindle end to table ctr. 3.94" to 42.52"
Table Type (Indexing angle) Index (0.001 deg.)
Speed Range (rpm) 35 - 10,000
Spindle Taper CAT 50
Spindle HP (30 min/cont) 50/40 HP
Pallet Load Capacity 3306.9 lbs.
Pallet Size 630mm Square
Rapid feed rate (ipm) 2362.2 ipm
Program feed rate 2362.2 ipm
Thru Spindle Coolant 1000 psi
No. of Tools 160
Max tool length 24.8
Max. tool weight inc. holder and pull stud 66.14 lbs.
Max cutter dia. (w/ adjacent tools) 5.31
Max cutter dia. (w/o adjacent tools)10.24
Machine weight 41,887 lbs
Power On Hours (February 19, 2015)41,504
Auto Operation Hours (February 19, 2015) 35,574
Cutting Hours (February 19, 2015) 18,983
Laser Tool Length Measurement - Renishaw NC4
MATRIX CONTROL
Renishaw Spindle Probe
Workpiece Air Blast
Niagara Coolant System
Auto Tool Length Measurement & Breakage Detection
RFID Tool ID system
1000 PSI Coolant system with dual bag filter system
Mayfran Consep 2000 chip conveyor
Auto Pecking with Load Detection
