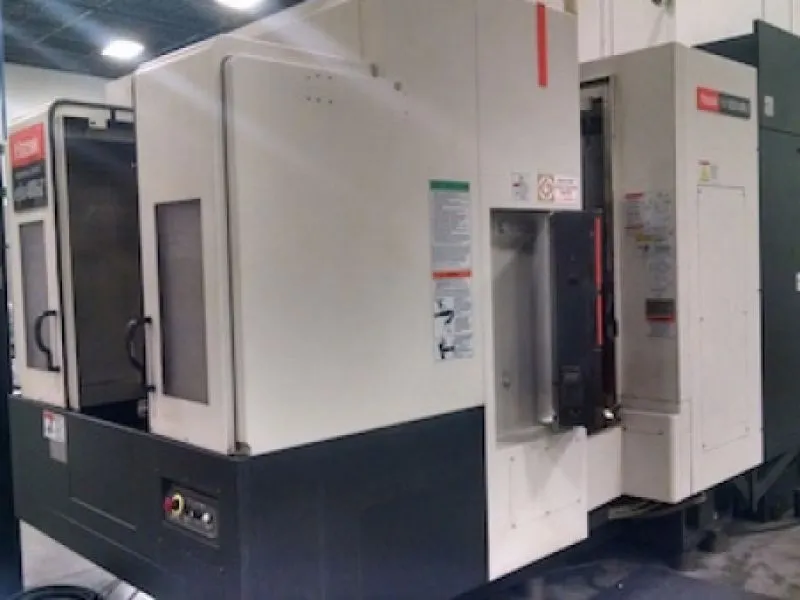

Mazak HCN-4000II Horizontal Machining Center 2008

Maximum workpiece diameter ...................... 630 mm (24.8”)

Maximum workpiece height ........................ 900 mm (35.43”)

X axis travel (column right and left) ........... 730 mm (22.05”)

Y axis travel (spindle up and down) ............. 730 mm (24.80”)

Z axis travel (table back and forth) ............ 740 mm (25.20”)

Distance from the spindle to the pallet center..70-810 mm (2.76-27.96”)

Distance from the spindle center to the pallet top..100-830 mm (3.15-27.95”)

Pallet load capacity ............................ 400 kg (882lbs.)

Spindle taper ................................... BT- 40

Spindle speed ................................... 18,000 rpm

Rapid traverse .................................. 2362”/min

Pallet dimension ................................ 400 mm (15.75”)

Pallet change time .............................. 6 s

Height from floor top ........................... 109.89”

Width ........................................... 85.04”

Length .......................................... 208.78”

Machine weight (approx) ......................... 20,944 lbs
