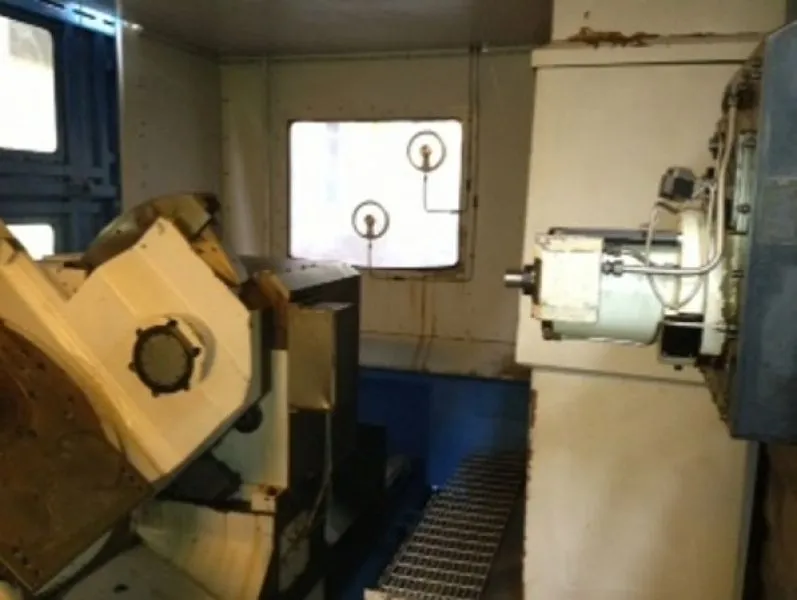

Mazak H-1250 (5-Axis) HMC 1994
Have one to sell?
ConditionUsed
1 available
Dimension of Pallet Configuration (49" X 49")
X-Axis (Cross).............75"
Y-Axis (Vertical)..........60"
Z-Axis (Longitudinal)......49"
A-Axis Tilting Angle Table + 10 ~ 100
B-Axis Rotary Angle Table 0 - 360°
Machine Drive Motor........40HP
Spindle................... ISO 50
Spindle Speeds (RPM)...... 35 – 12,000
Max. Weight to be load on the Pallet....5,800 LBS
Rapids Feed rate X-Axis......595 " per/min
Rapid Feed rate Y-Axis.......595 " per/min
Cutting Feed rate Z-Axis.....595" per/min
Number of Tools Accommodated..120 ATC
FMS with 10 Pallets Stack Full 5-AXIS TABLE---Tilting/Rotary Renishaw MP-10 Probe Rigid Tapping Chip Conveyor Coolant Thru Spindle-213 PSI EIA/ISO Machine Weight...........................88,000 LBS
Mazatrol M32 (full Color)
FMS System--10 pallets (OR>Can be a 2-Pallet Pod)
