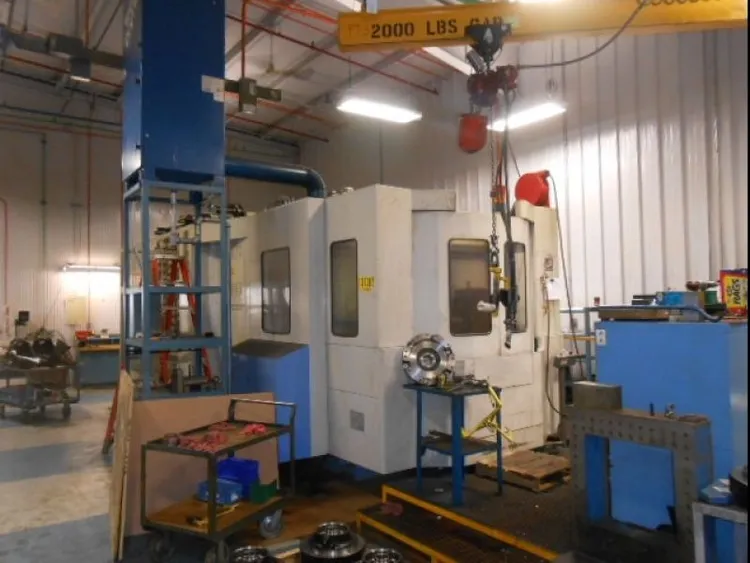

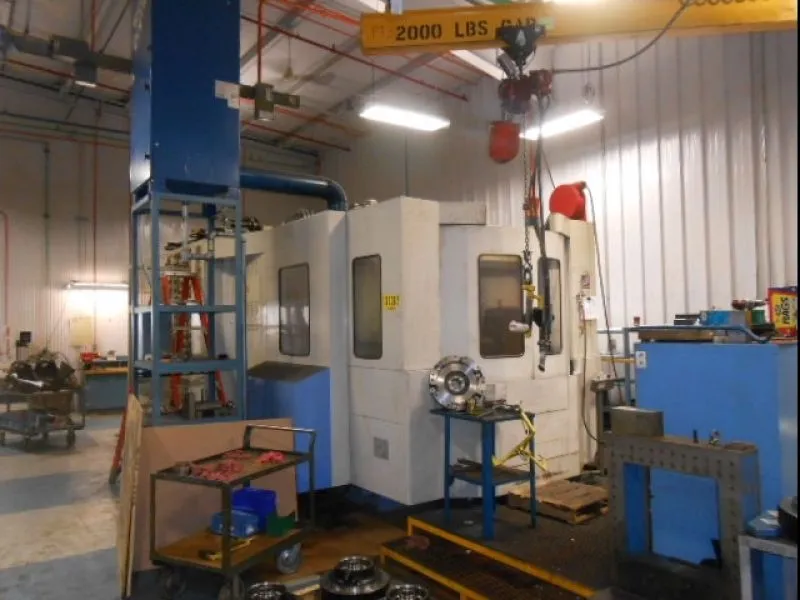

MAZAK FH-680X Horizontal Machining Center
Have one to sell?
ConditionUsed
1 available
- Pallet Size 24.8" X 24.8"
- Pallet Weight Capacity 3,315 lbs
- Pallet Change Time 8 Seconds
- X – Axis 41.3"
- Y - Axis 31.5"
- Z – Axis 31.5"
- Table Indexing .001 N/C CONTOURING
- Spindle Center To Table Top 1.97" - 33.47"
- Spindle Nose To Table Center 5.91" - 37.41"
- Spindle Drive Motor 40 HP AC
- Spindle Taper CAT #50
- Spindle Speeds 10,000 RPM
- Rapid Traverse Rate 1260 IPM X,Y,Z
- Auto Tool Change Capacity 120 ATC
- Tool Change Time 1.8 secs.
- Max Tool Dia. (With Adjacent Pockets Empty) 10.2"
- Max Tool Weight 59.4 LBS.
- Machine Weight 38,000 LBS
- Mazatrol M-Plus (14”Full Color) CNC Conversational Control
- N/c rotary table
- Eia / iso input function
- Additional memory 2000 meters
- Monitoring system b (Renishaw Probe Prep)
- Fms prep (type one)
- Mist collector
- Hi-pressure coolant thru the spindle (1000 psi)
- Additional workpiece coordinate system
- Additional pallet with edge locator
- Visi-port
- User macro
- Additional eia/iso funtion
- Mayfran conquest 2000 rear exit chip conveyor system
