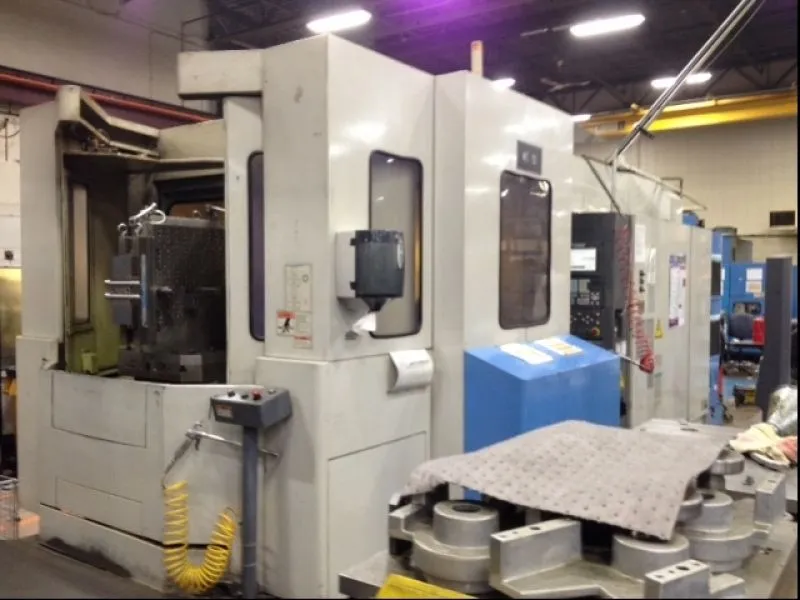

MAZAK FH-680 Horizontal Machining Center

- Pallet Size 24.8" X 24.8"
- Pallet Weight Capacity 3,315 lbs
- Pallet Change Time 8 Seconds
- X – Axis…………………… 41.3"
- Y – Axis…………………… 31.5"
- Z – Axis…………………… 31.5"
- Table Indexing .001 N/C CONTOURING
- Spindle Center To Table Top 1.97" - 33.47"
- Spindle Nose To Table Center 5.91" - 37.41"
- Spindle Drive Motor 40 HP AC
- Spindle Taper CAT #50
- Spindle Speeds 8,000 RPM
- Rapid Traverse Rate 1260 IPM X,Y,Z
- Auto Tool Change Capacity 120 ATC
- Tool Change Time 1.8 secs.
- Max Tool Dia. (With Adjacent Pockets Empty) 10.2"
- Max Tool Weight 59.4 LBS.
- Machine Weight 38,000 LBS
