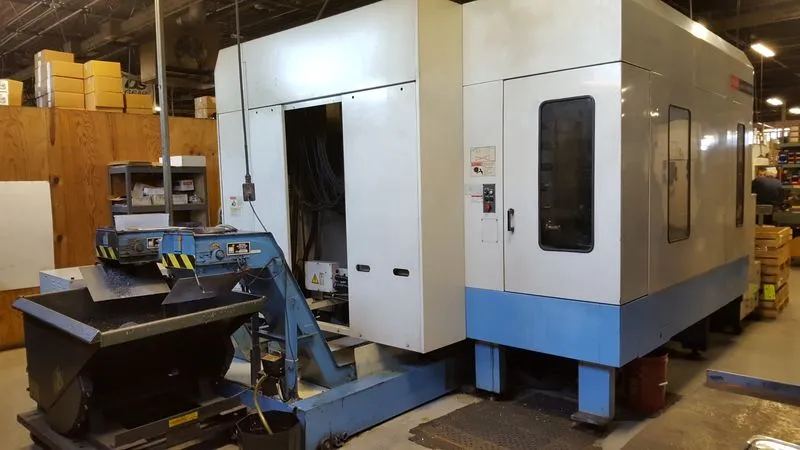

MAZAK FH-6000 HMC

Pallet Size.............................. 20.8" x 20.8"

X‑Axis Travels........................... 34.3"

Y‑Axis Travels........................... 31.5"

Z‑Axis Travels........................... 34.7"

Maximum Table Load....................... 2815 lbs.

Maximum Workpiece Height................. 35.4"

Maximum Workpiece Diameter............... 36.3"

Spindle Nose............................. Cat #50

Spindle Horsepower ......... 40 HP

Spindle Torque........................... 386.9 ft./lbs.

Obtains Full HP @........................ 480 RPM

Constant Torque Range.................... 35 ‑ 480(243) RPM

Spindle RPM.............................. 10,000

Spindle Speed Increment.................. 1 RPM

Number of Ranges......................... 1 Ranges(2)

Tool Clamping Force...................... 4,630 ft./lbs.

Magazine Capacity........................ 40

Tool‑to‑Tool Time...................... 1.8 Seconds

Chip‑to‑Chip Time (Approx.)............ 5 Seconds

Maximum Tool Diameter.................... 5.31"

Max. Tool Dia. w/Adjacent Pockets Empty.. 10.2"

Rapid Traverse Rate...................... 1,575 IPM

Maximum Programmable Feedrate...... 1,575 IPM

Y‑Axis Thrust............................ 1,560 lbs.

Z‑Axis Thrust............................ 3,200 lbs.

Floor Space Required..................... 146" x 250.5"

Machine Height From Bottom of Base....... 125.5"

Machine Weight........................... 37,990 lbs.
