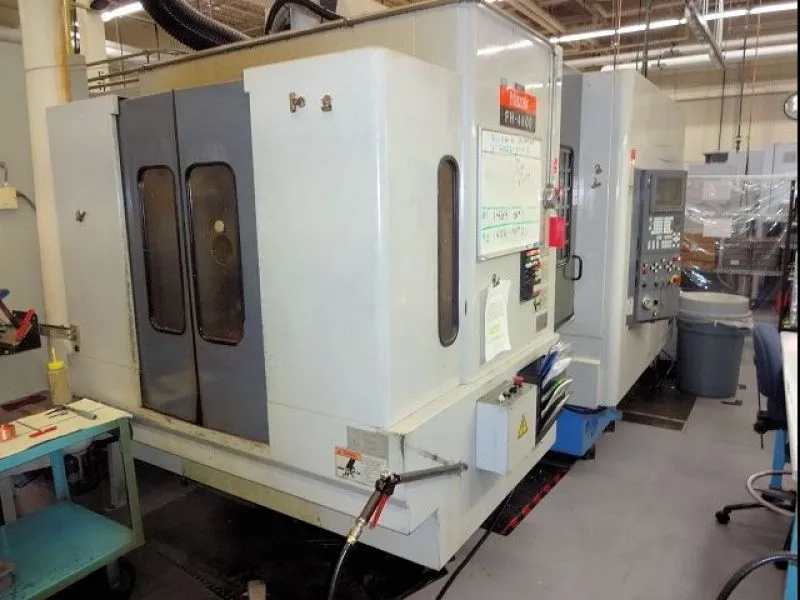

MAZAK FH-4800 HORIZONTAL MACHINING CENTER

Number Of Pallets

2Pallet Size 15.75" X 15.75"Table Load Capacity 880 lbs.Axis Travel X - Axis 22.05" Y - Axis 24.02" Z - Axis 22.05"X-Axis Thrust 2,359 ft/lbsY-Axis Thrust 1,587 ft/lbs.Z-Axis Thrust 2,226 ft/lbs.Table Indexing 1 degreeTable Indexing Time 2.5 SEC.(90 DEG)Pallet Change Time 6 SecondsSpindle Center to Top Of Pallet 1.97" - 25.98"Spindle Nose To Pallet Center 5.91" - 27.95"Spindle Drive Motor 30 HP ACSpindle Taper Cat # 40Spindle Speeds 12,000 RPMRapid Traverse Rate 1968 IPM X,Y,ZProgrammable Cutting Feedrate 1968 IPM X, Y, ZAuto Tool Change 120 ATCTool Change Time (chip to chip) 3 SecondsMax Tool Dia. 5.9

"Max Tool Weight 26.4 LBS.Max Tool Length 12.60"

Machine Weight 25,080 LBS.
