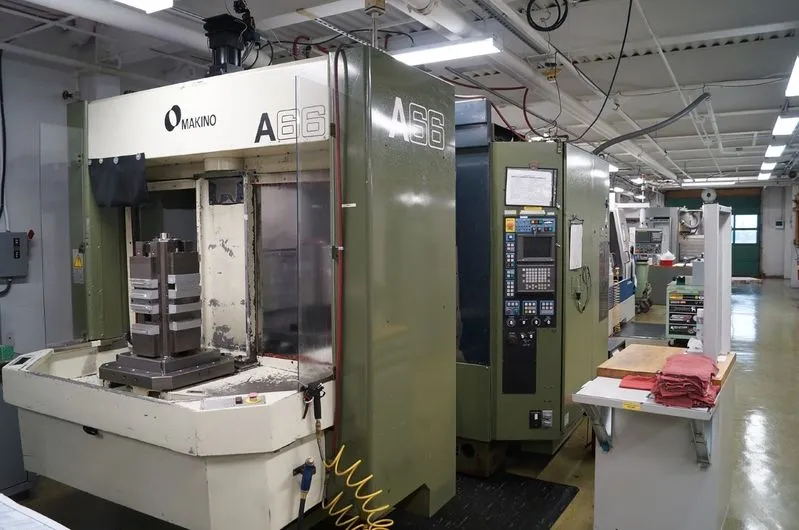

Makino A-66 Horizontal Mach. Center

Makino A-66 Horizontal Mach. Center

Have one to sell?
(847) 504-6700
sales@CCMachineTools.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Horizontal Machining Centers
Manufacturer:
MAKINO
Model:
A66
Status:
For Sale
X31.5"800.1 mm
Y27.6"701.04 mm
Z25.2"640.08 mm
Power30 hp22.4 kW
RPM20,000 RPM20,000 RPM
# ATC4040
Pallet-W19.7"500.38 mm
Pallet-L19.7"500.38 mm
ControlCNC (Pro 3 (Fanuc 16M))CNC (Pro 3 (Fanuc 16M))
Dimensions160″L x 109″W x 116″H160″L x 109″W x 116″H
Weight26,000 LBS26,000 LBS

X-Axis Travel 31.5″

Y-Axis Travel 31.5″

Z-Axis Travel 25.2″

Pallets, Number of: 2

Pallet Index: 1 Degree

Pallets Size: 19.7″ x 19.7″

Pallets Load: 1,100 LBS

Pallets Index: 1 Deg

Spindle Taper: HSK A63

Spindle Speed: 20,000 RPM

Spindle Motor: 25 HP

Tool Capacity: 40 ATC

Machine Dimensions: 160″L x 109″W x 116″H

Machine Weight: 26,000 LBS

Pro 3 (Fanuc 16M)

Rear Turbo Microfine Lift-up Chip Conveyor

Oil Temperature Controller

8 Nozzle Coolant

Simple Door Interlock

Signal Lamp
