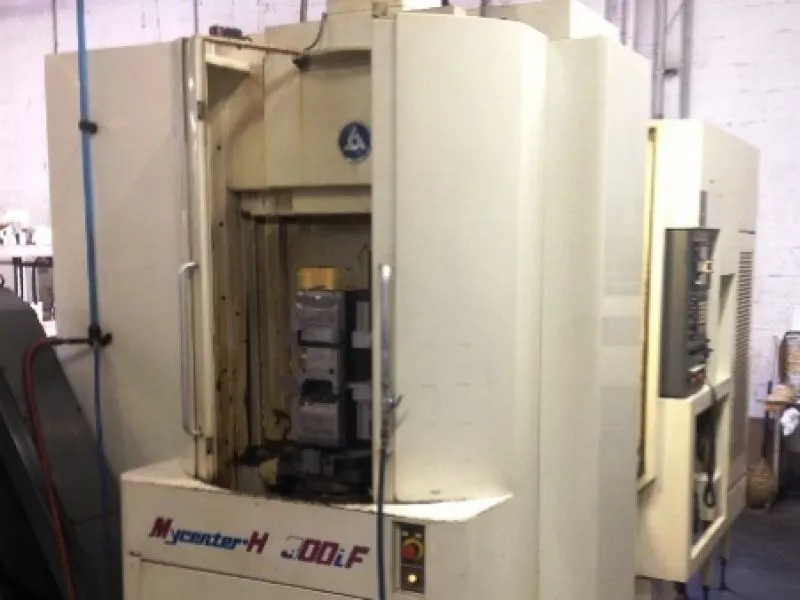

Kitamura Mycenter-HX300iF CNC Horizontal Machining Center 2005

Pallet Size / No. of Pallets / APC Time 12.0" x 12.0" / 2 / 5.0 sec

Pallet Load Capacity 550 lbs

Pallet Indexing .001 Degree

Max. Workpiece Diameter x Height 19.6” x 29.1”

Distance from Table Surface to Spindle Center 1.5” to 21.6”

Distance from Table Center to Spindle Nose 4.0” to 20.1”

Rapid Traverse Rate 1969 IPM

Cutting Feed Rates 1969 IPM

Tool Taper BT #40

Tool Magazine Capacity 40 ATC

Max. Tool Length / Weight 11.81” / 22 lbs

Tool Change Time (Tool to Tool) / (Chip to Chip) 1.7 s / 5.0 s

Spindle Motor

Required Floor Space 112” W x 137” D x 115” H

Weight

X Axis Travel 20.1"

Y Axis Travel 20.1"

Z Axis Travel 19.2"
