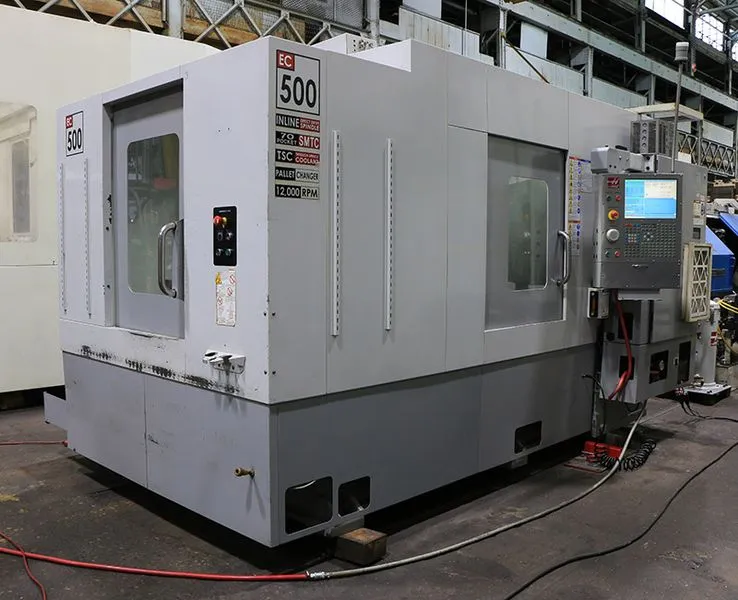

HAAS EC-500 HORIZONTAL MACHINING CENTER

HAAS EC-500 HORIZONTAL MACHINING CENTER

Have one to sell?
(847) 504-6700
sales@CCMachineTools.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Horizontal Machining Centers
Manufacturer:
HAAS
Model:
EC-500
Status:
For Sale
X32"812.8 mm
Y20"508 mm
Z28"711.2 mm
Power20 hp14.9 kW
RPM8,000 RPM8,000 RPM
# ATC4141
TaperCT or BT 40CT or BT 40
Pallet-W19.69"500.13 mm
Pallet-L19.69"500.13 mm
# Axis44
Weight1,000 LBS.1,000 LBS.

X-AXIS TRAVEL ..................... 32"

Y-AXIS TRAVEL ..................... 20"

Z-AXIS TRAVEL ..................... 28"

SPINDLE SPEED .................. 12,000 RPM

SPINDLE MOTOR ................. 30/40 HP

SPINDLE TAPER .................. CAT 40

TOOL POSITIONS ............... 70 ATC

PALLET INDEXING .............. FULL 4TH AXIS

PALLET DIMENSIONS ................. 19.69" X 19.69"

NUMBER OF PALLETS ................ (2)

MAXIMUM WORKPIECE WEIGHT ..... 1,000 LBS.

FULL 4TH AXIS

THRU SPINDLE COOLANT (1000 PSI)

HENNIG CHIP CONVEYOR

ADVANCED TOOL MANAGEMENT

RIGID TAPPING

QUICK CODES

MACROS

70 POCKET AUTOMATIC TOOL CHANGER

MANUALS
