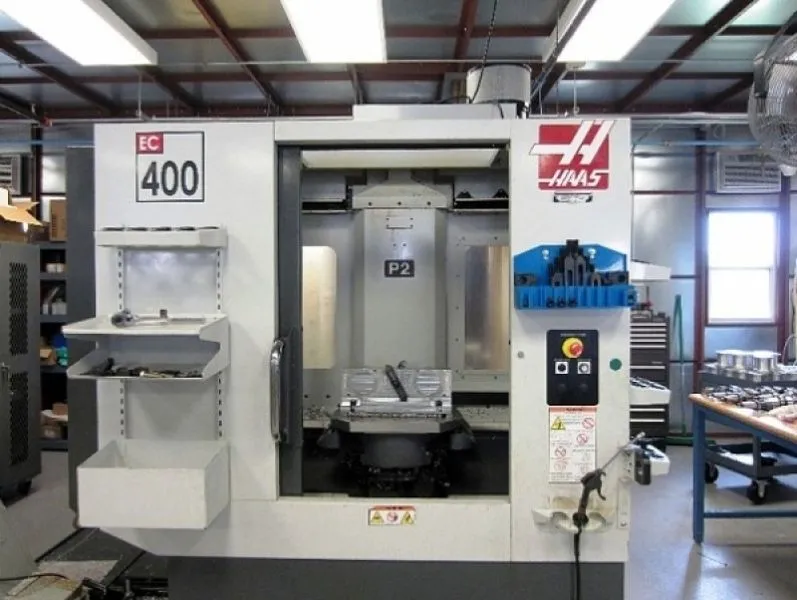

HAAS EC-400 (4-AXIS) HMC 2010

Have one to sell?
(847) 504-6700
sales@CCMachineTools.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Horizontal Machining Centers
Manufacturer:
HAAS
Model:
EC-400
Status:
For Sale
X20"508 mm
Y20"508 mm
Z20"508 mm
Power20 hp14.9 kW
RPM8,000 RPM8,000 RPM
# ATC2424
TaperCT or BT 40CT or BT 40
Pallet-W15.75"400.05 mm
Pallet-L15.75"400.05 mm
# Axis44
ControlCNC (Haas)CNC (Haas)
Weight22,500 LBS.22,500 LBS.

Number Of Pallets 2
Pallet Size 15.8" X 15.8"
Table Load Capacity 1000 lbs.
Axis Travel X - Axis 20"
Y - Axis 20"
Z - Axis 20"
Table Indexing .001 contouring
Spindle Drive Motor 30 HP AC
Spindle Taper Cat # 40
Spindle Speeds 12,000 RPM
Rapid Traverse Rate 1000 IPM X,Y,Z
Cutting Feed Rate 500 IPM
Auto Tool Change 24 ATC
Machine Weight 22,500 LBS.

HAAS CNC CONTROL
FULL 4TH AXIS ROTARY TABLE
EARLY POWER FAIL DETECTION MODULE
8 SPARE M-FUNCTIONS
COLOR LCD
RIGID TAPPING
REMOTE JOG
ETHERNET
750 MEG MEMORY
HIGH SPEED MACHINING
CHIP CONVEYOR
PROGRAMMABLE COOLANT
300 PSI COOLANT THRU THE SPINDLE
RENISHAW INTUITIVE PROBING (TOOL AND WORK PIECE)
ALL AVAILABLE MANUALS
FULL ENCLOSURE
***1116 cutting hours****
