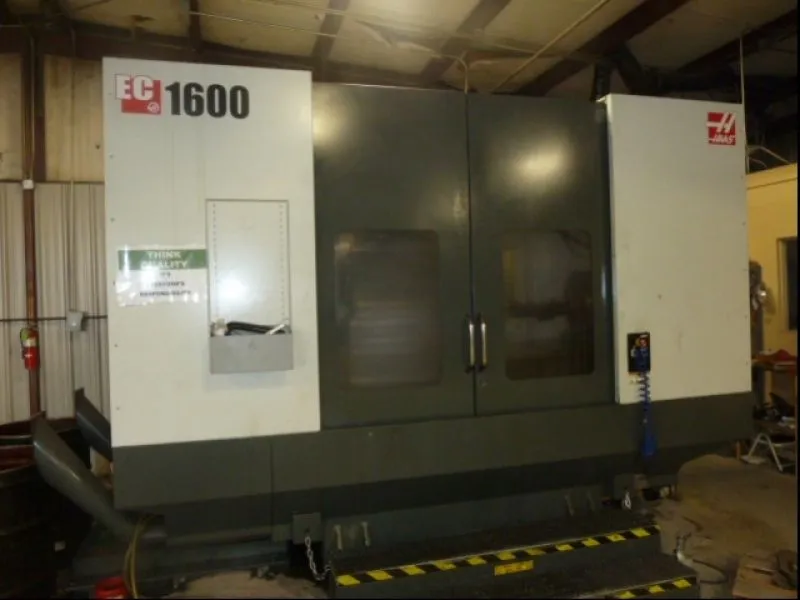

HAAS EC-1600 Horizontal Machining Center

--X: 64"
--Y: 40"
--Z: 32"
TABLE:
LENGTH: 64"
WIDTH: 36"
T-SLOT WIDTH: 5/8"
T-SLOT CENTER DISTANCE: 4.92"
MAX WEIGHT ON TABLE: 10000LB
SPINDLE:
MAX RATING: 30 HP
MAX SPEED: 6000 RPM
MAX TORQUE: 450 FT-LB @ 500 RPM
DRIVE SYSTEM: 2-SPEED GEARED HEAD
TAPER: CAT50
FEEDRATES:
RAPIDS ON X: 540 IN/MIN
RAPIDS ON Y: 540 IN/MIN
RAPIDS ON Z: 540 IN/MIN
MAX CUTTING: 500 IN/MIN
TOOL CHANGER:
TYPE: SMTC
CAPACITY: 30+1
MAX TOOL DIAMETER (ADJ EMPTY): 10"
MAX TOOL DIAMETER (FULL): 4"
MAX TOOL LENGTH (FROM GAGE LINE): 20"
MAX TOOL WEIGHT: 30LB
TOOL-TO-TOOL (AVG): 10.3 SEC
CHIP-TO-CHIP (AVG): 12.6 SEC
MACHINE WEIGHT: 30000 LB
