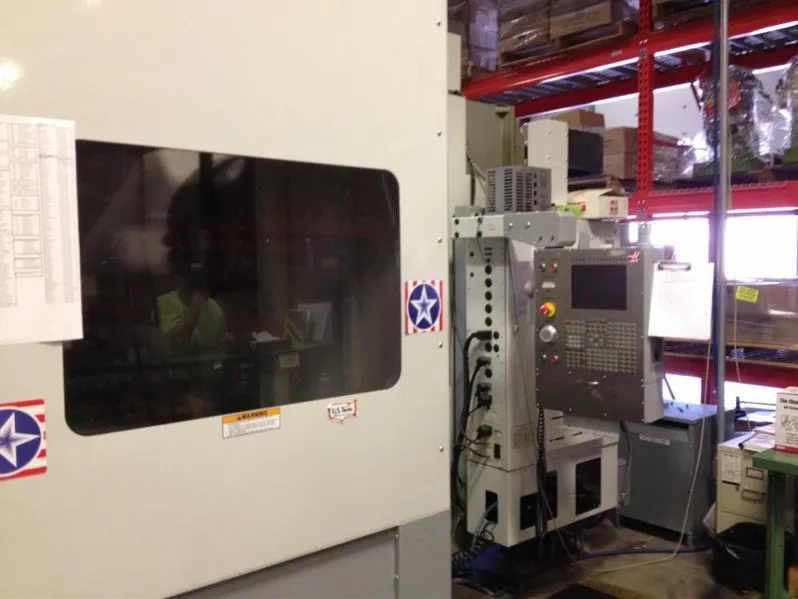

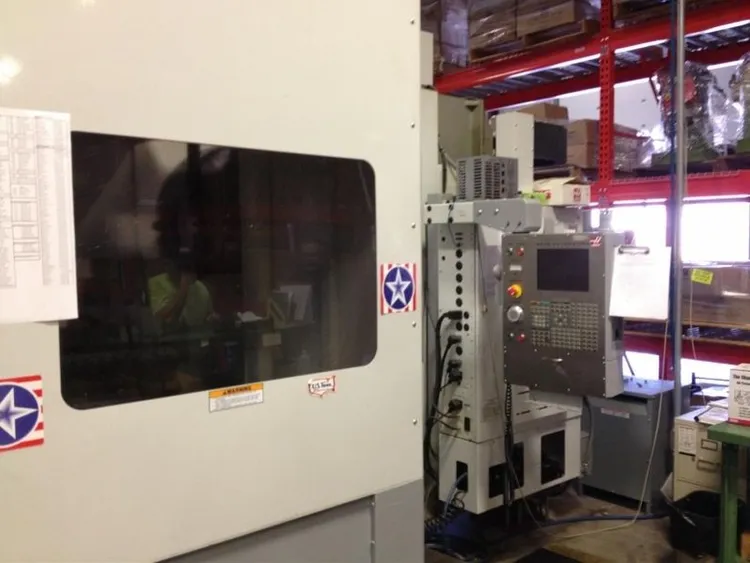

Haas EC 1600 Horizontal Machining Center 2006
Have one to sell?
ConditionUsed
1 available
Control............. ........... Haas
Table Size ..................... 64" X 36"
Max. Table Load....... ......... 10,000 Lbs.
X Axis Travel .................. 64"
Y Axis Travel .................. 40"
Z Axis Travel .................. 32"
Spindle Taper .................. CT50
Max Spindle Speed .............. 6000 RPM
Max Power Rating ............... 30 HP
Rapid Traverse Rate X, Y, Z .... 540 IPM
Toolchanger .....................30 Station Side Mount
Machine Weight.................. 31,840 LBS
Machine Dimension............... 140.6" H x 171" W x 146.48" L
Built in Full 4th Axis Rotary
1000 PSI Through Spindle Coolant
Programmable Coolant Nozzle
Rigid Tap
Visual Quick Code Probing System
Dual Chip Augers
Ethernet
USB Port
2 - Speed Geared Head
Spindle Orientation
Custom Macros
Coordinate Rotation & Scaling
1 MB of Memory
