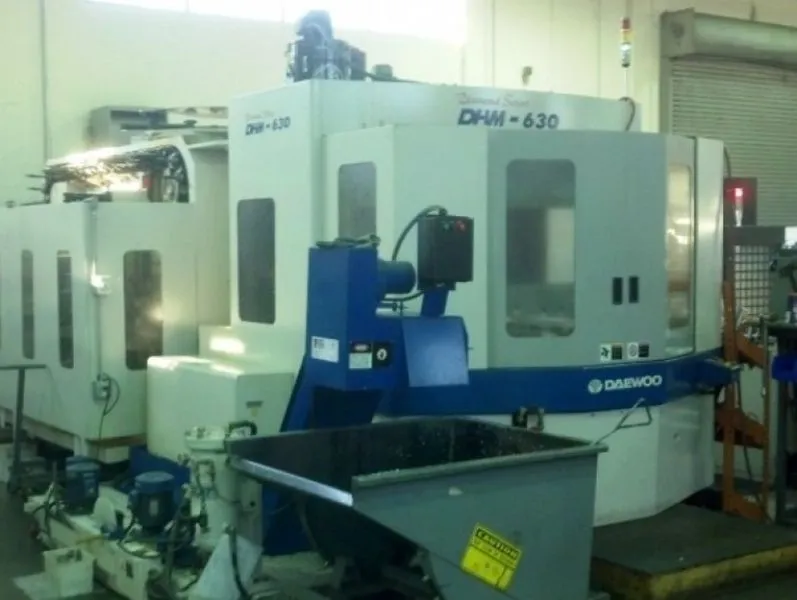

DOOSAN DHM 630 CNC HORIZONTAL MACHINING CENTER 2004
Have one to sell?
ConditionUsed
1 available
PALLET SIZE 24.8" X 24.8"
NUMBER OF PALLETS 2
TABLE LOAD CAPACITY 2640 LBS
X-AXIS TRAVEL 39.4"
Y-AXIS TRAVEL 31.5"
Z-AXIS TRAVEL 33.5"
SPINDLE NOSE TO TABLE CENTER 5.9" - 39.4"
SPINDLE CENTER TO TABLE TOP 2" - 33.6"
TABLE INDEXING 1 DEGREE
NUMBER OF TOOL CHANGES 90 ATC
MAX TOOL WEIGHT 55 LBS.
MAX TOOL DIAMETER 5.3"/9.8"
MAX TOOL LENGTH 21.7"
SPINDLE SPEEDS 6,000 RPM
SPINDLE HORSEPOWER 35 HP AC
SPINDLE TAPER CAT #50
RAPID TRAVERSE RATE 945 X,Y,Y IPM
CUTTING FEEDRATE .04-472 IPM
MACHINE WEIGHT 41.357 LBS.
FANUC 18iMB CNC CONTROL
ROYAL MIST FILTER SYSTEM
COOLANT THRU SPINDLE
RENISHAW MP10 INFRARED PROBING SYSTEM
AUTOMATIC TOOL LENGTH MEASUREMENT
COOLANT SYSTEM
HAND HELD MPG
RIGID TAPPING
SPINDLE AIR BLAST
CHIP AUGERS
CHIP CONVEYOR (OUTSIDE UPRIGHT)
ALL AVAILABLE MANUALS
