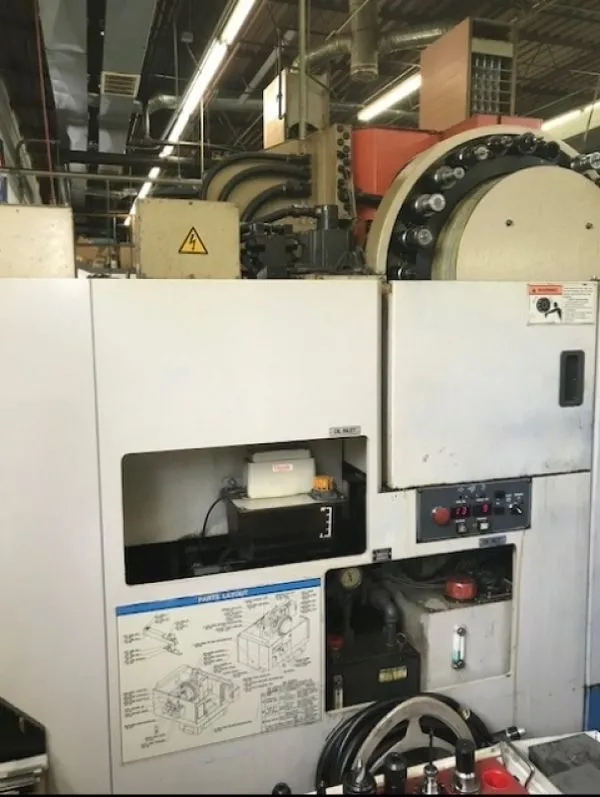

MAZAK V-414 Vert. Mach. Center NEW IN: 1993

MAZAK V-414 Vert. Mach. Center NEW IN: 1993

Have one to sell?
(847) 504-6700
sales@CCMachineTools.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
MAZAK
Model:
MAZATECH V-414
Status:
For Sale
X22"558.8 mm
Y16.1"408.94 mm
Z18.1"459.74 mm
Power10 hp7.5 kW
RPM7,000 RPM7,000 RPM
# ATC2424
Table-W16.1"408.94 mm
Table-L35.4"899.16 mm
ControlCNC (Mazatrol M-32)CNC (Mazatrol M-32)
Dimensions139"x94"x96"139"x94"x96"
Weight11,700 lbs.11,700 lbs.

Table Size

35.43" x 16.14"

Table Load Capacity

1,100 lbs.

Table Top to Spindle Nose

5.91" ~ 24.02"

X-Axis Travel

22.05"

Y-Axis Travel

16.14"

Z-Axis Travel

18.11"

Spindle Taper

CAT # 40

Spindle Speed

50 ~ 7000 RPM

Spindle Motor

10 HP

Tool Magazine Capacity

24 ATC

Tool Change Time (Chip to Chip)

5.5 seconds

Max. Tool Diameter

3.94"

Rapid Traverse X, Y / Z

945 / 709 IPM

Machine Dimensions

139"x94"x96"

Machine Weight

11,700 lbs.

Mazatrol M-32

Tool Breakage Detection
Adaptive Feedrate Control
24 Position Side Mounted ATC
Complete Coolant System
RS 232 Port Interface
Rigid C-Frame Design
All Available Manuals
