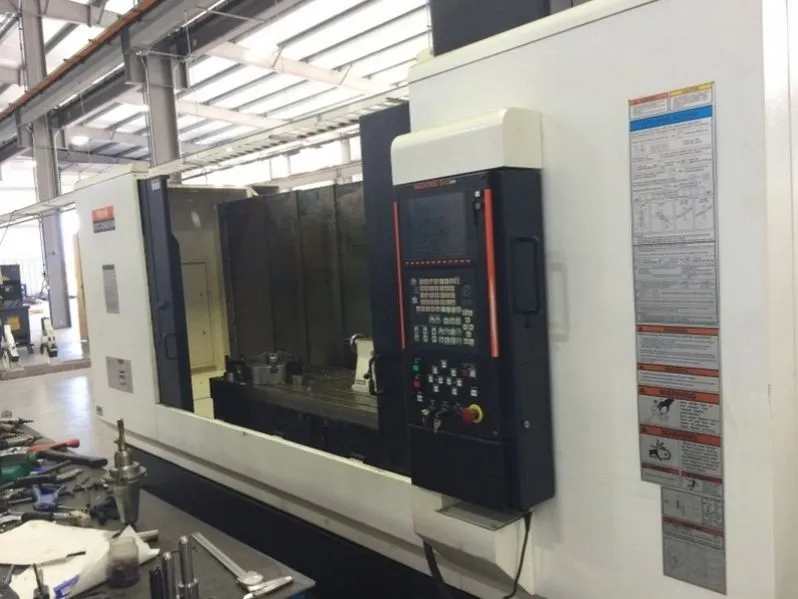

Mazak VTC250D/50 CNCVertical Machining Center
Have one to sell?
ConditionUsed
1 available
Travels:
X Axis 69.3"
Y Axis 25"
Z Axis 26"
Table Size 82.7" x 25"
Spindle Speed 6000 RPM
Spindle Taper 50
Spindle Nose to Table Top 7.09" - 33.07"
Spindle Torque 664 ft. lbs.
Spindle Motor 30 HP
Tools 24 ATC
Tool Change Time (T-T / C-C) 2.0 / 5.2 Seconds
Max Tool Diameter 4.13" / 8.27"
Max Tool Length 13.78"
Max Tool Weight 33 lbs.
Machine Dimensions (L x W x H) 228" x 134" x 133.5"
Machine Weight 20,000 lbs.
Mazatrol MATRIX Control
50 Taper
3.5 FDD Unit
Advantec CNC Option Package
213 PSI High Pressure Coolant Thru Spindle
Windows 2000 Operating System
Mazak MR-32 Kitagawa 4th Axis Rotary Table w/Approx. 12” Chuck & Tailstock
Mazak Monitoring System B (Renishaw MP-60 Probe)
Auto Tool Length Measurement Renishaw TS27R
Chip Conveyor
