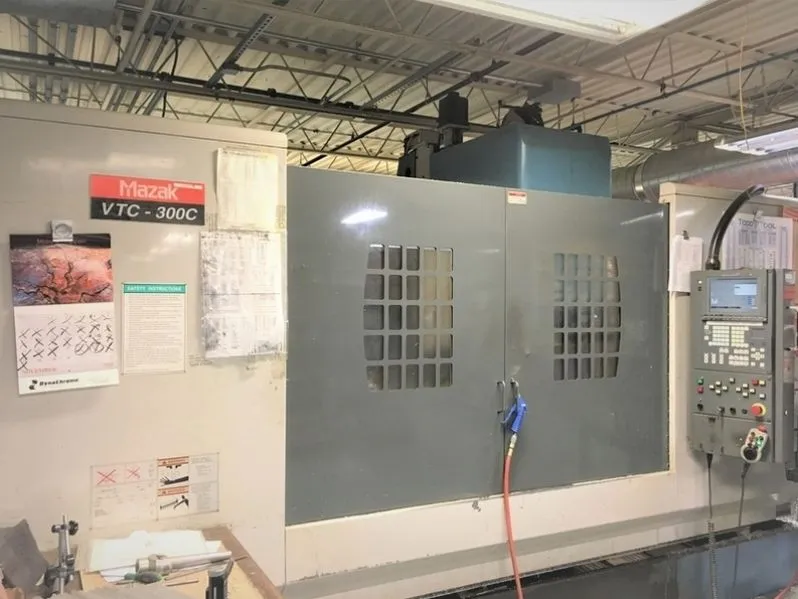

MAZAK VTC-300C Vertical Mach. Center
Have one to sell?
ConditionUsed
1 available
Table Size:
78.74" x 29.92"
Table Load Capacity:
3,000 lbs
X-Axis Travel:
65.35"
Y-Axis Travel:
29.92"
Z-Axis Travel:
26"
Spindle Nose to Table Top:
5.8" - 31.8"
Spindle Taper:
CAT #40
Spindle Speed:
40 - 10,000 RPM
Spindle Motor:
20 HP
Rapid Traverse Rates:
1181 IPM
Tool Magazine Capacity:
48 Position ATC
Tool Change Type:
Servo Driven
Max. Tool Diam./Length/Weight:
4.3" / 13.8" / 17.6 lbs.
Tool Change Time c to c / t to t:
4.7 sec / 1.5 sec.
Machine Dimensions w/conveyor:
211" x 137" x 122"
Machine Weight:
18,600 lbs
48 Tool Servo Driven Tool Magazine
Coolant Thru the Spindle
Chip Conveyor
Automatic Tool Length Measurement Probe
EIA Tornado Cycle-Boring
Circle Mill Function G-130
EIA Helical Tapping Cycle-Thread Milling
Rigid Tapping
Remote Jog Handle
Helical Interpolation
RS-232 Interface
3.5" Floppy Disk Drive
PCMCIA Interface - 2 Slots
I/C Memory Card Interface
EIA/ISO Input Function
Spindle Chiller
Backround Toolpath Check
Adaptive Feedrate Control
Tool Life Monitoring
Tool Breakage Detection
Complete Coolant System
Multi Tap Transformer
Machine shows 3,534 cut hours
