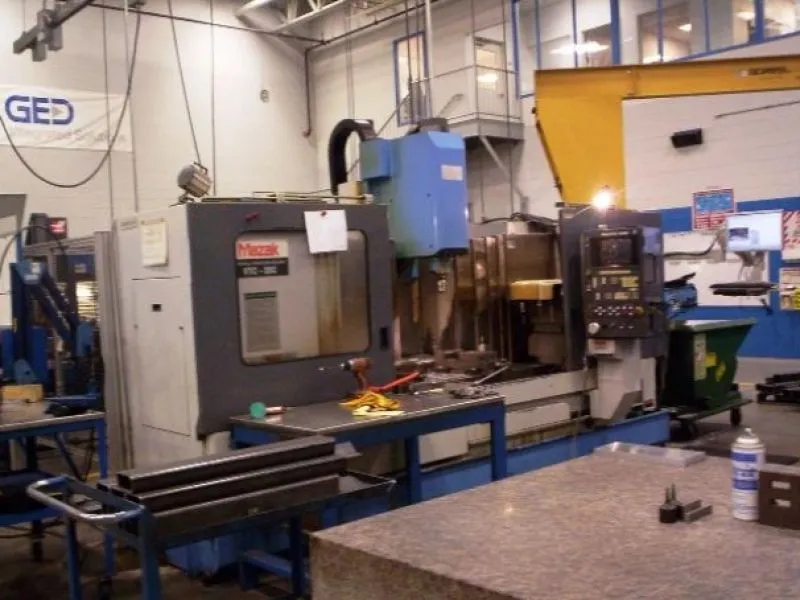

Mazak VTC-20C Vertical Machining Center 1996

Table Size:...................78.74” x 20.10”

X Axis Travels:.............. 65.35”

Y Axis Travels:.............. 20.08”

Z Axis Travels:.............. 20.08”

Table to Spindle Nose:....... 7.9” to 27.16”

Spindle Speeds:.............. 7,000 RPM

Spindle Taper:............... CAT 40

Feed Rates (X,Y):............ 787 IMP

Feed Rates (Z):.............. 590 IPM

Cutting Feed Rate:........... 0.04-196.9 IPM

Jog Feed Rate:............... 0.08-78.7 IPM

Tool Changer:................ 48 Tools

Max. Tool Diameter:.......... 3.1”

Max. Tool Weight:............ 17.6 LBs

Max. Tool Length:............ 13.8”

Main Motor:.................. 20HP

Approx. Weight:.............. 14,000 lbs
