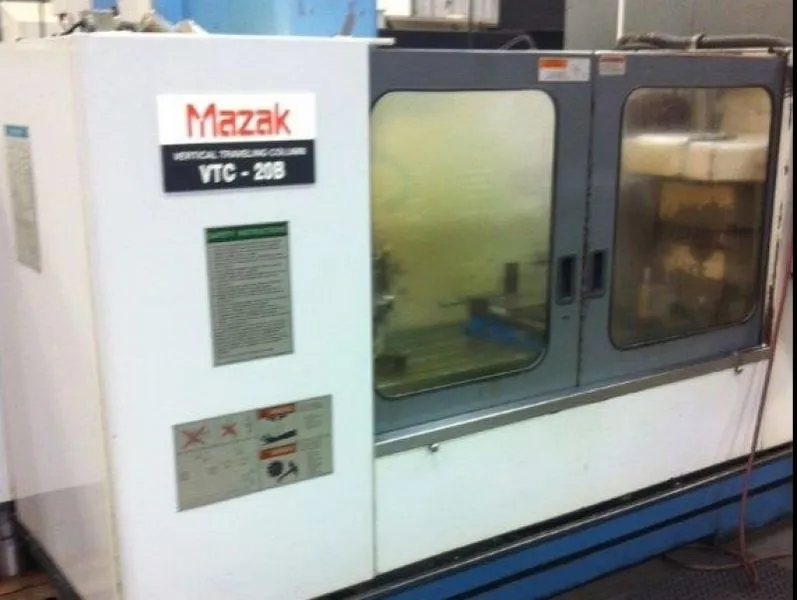

MAZAK VTC-20B CNC Vertical Machining Center

Table Size ........................................................................... 57.48" x 20"

X-Axis Travel ..................................................................... 44.09"

Y-Axis Stroke ..................................................................... 20.14"

Z-Axis Stroke ..................................................................... 20.08"

Distance From Spindle Nose to Table Top ................... 4.3" - 24.4"

Distance From Spindle Centerline to Column .............. 22.1"

Spindle Nose .................................................................. CT40

Spindle Speed ................................................................ 40-8000 RPM

Tool Magazine Capacity ............................................ 24

Max Tool Diameter ...................................................... 3.1"

With Adjacent Pockets Empty ................................... 4.3"

Max. Tool Length ......................................................... 13.8"

Max. Tool Weight.......................................................... 17.6"

Rapid Traverse Rate X & Y Axis. .............................. 787 IPM

Z Axis .............................................................................. 590 IPM

Main Motor… ............................................................... AC 15 HP

Floor Space Requirements ........................ 118.11" x 101.57"

Machine Height .......................................... 106"

Machine Weight .......................................... 12,000 Lbs
