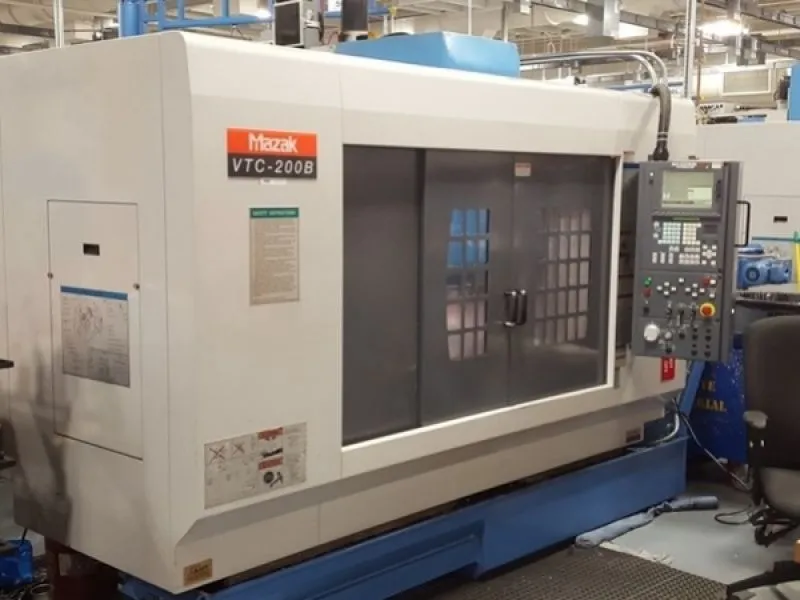

MAZAK VTC-200B VMC

Table Size................................. 57.48" X 20.08"

Table Load Capacity........................ 1,760 lbs

(Load Uniformly Distributed)

Floor Space...(without Chip Conveyor)......114.76" X 109.84"

Floor Space...(With Chip Conveyor).........170.63" X 113.78"

Machine Height From Machine Base........... 108.62"

Total Power Required Machine Only.......... 21.4 KVA

Note: Machine Arranged for 460 Volts 60 Hz

(Unless Otherwise Specify)

Air Requirements........................... 70-130 PSI 5cfm

Machine Weight............................ 13,200 lbs

TRAVELS:

X-Axis Travel.............................. 44.09"

Y-Axis Travel.............................. 20.08"

Z-Axis Travel.............................. 20.08"

Distance from Spindle Nose-to-Table Top...7.09"min/27.17"max

Distance from Spindle C/L to Column........ 21.65"

Table Height............................... 31.5"

SPINDLE:

Spindle Nose............................... #40

Spindle Speed.............................. 10,000 RPM

Spindle Acceleration Time (0-10,000 RPM)... 1.8 sec

Number of Spindle Ranges................... 2 (Delta - Star)

Spindle Horsepower (10min/ 30min).......... 20/15 HP

Obtain Full HP @ (30 Min).................. 3,300 RPM

Spindle Cooling System..................... Chiller Coil/Fan

SERVO/AXIS DRIVES:

Type of Servo Drives....................... Digital AC Motor

X-Axis Rapid Traverse...................... 1181 IPM

Y-Axis Rapid Traverse...................... 1181 IPM

Z-Axis Rapid Traverse...................... 1181 IPM

Floor Space...(without Chip Conveyor)......114.76" X 109.84"

Floor Space...(With Chip Conveyor).........170.63" X 113.78"

Machine Height From Machine Base........... 108.62"

Total Power Required Machine Only.......... 21.4 KVA

Note: Machine Arranged for 460 Volts 60 Hz

(Unless Otherwise Specify)

Air Requirements........................... 70-130 PSI 5cfm

Machine Weight............................ 13,200 lbs
