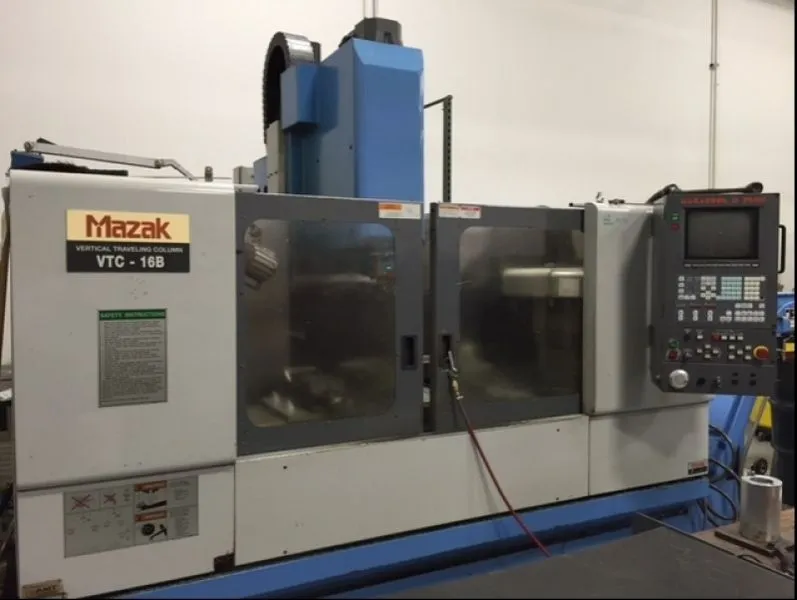

MAZAK VTC-16B Vertical Machining Center

Table Size ................................. 57.4" x 16"
X-Axis Travel ............................ 44.0"
Y-Axis Stroke ............................ 16.1"
Z-Axis Stroke ............................ 20.0"
Distance From Spindle Nose to Table Top ..... 4.3" - 24"
Distance From Spindle Centerline to Column .. 22"
Spindle Nose ........................... CT40
Spindle Speed ......................... 20-8000 RPM
Tool Magazine Capacity.............. 24
Max Tool Diameter .................... 3.1"
With Adjacent Pockets Empty..... 4.3"
Max. Tool Length ....................... 13.8"
Max. Tool Weight....................... 17.6"
Rapid Traverse Rate X & Y Axis.... 787 IPM
Z Axis ........................................ 590 IPM
Main Motor. ............................ AC 15 HP
Floor Space Requirements ........ 118" x 101"
Machine Height ........................ 106"
Machine Weight ....................... 12,000 Lbs
