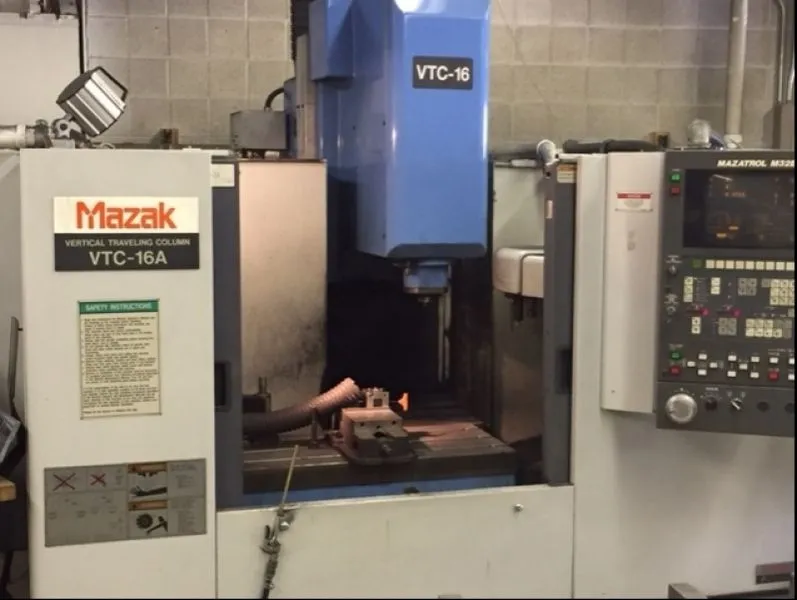

MAZAK VTC-16A Vertical Machining Center

Control ............................................................................................... Mazatrol M-Plus

X Axis Travel ....................................................................................................... 22.05”

Y Axis Travel ....................................................................................................... 16.14”

Z Axis Travel ...................................................................................................... 20.08”

Table Size ................................................................................................ 35.4 x 16.14"

Max. Table Load. ........................................................................................... 1,000 Lbs.

Spindle Nose to Table. .................................................................................... 4" - 24.4"

Spindle Motor ......................................................................................................15 HP

Spindle Speeds ............................................................................................ 8,000 RPM

Spindle Taper .......................................................................................................CT 40

ATC ........................................................................................................................... 24

X & Y Rapids... ................................................................................................ 787 IPM

Z Axis Rapids.... ............................................................................................... 590 IPM

Machine Dimensions (Approx)... .................................................. 102.4" x 97.3 x 106"

Machine Weight (Approx)..... ........................................................................ 8,800 Lbs.
