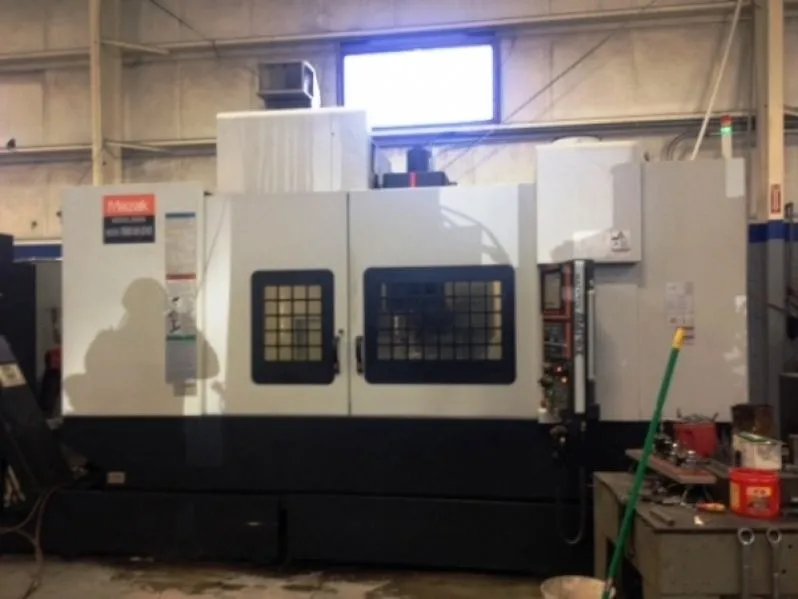

Mazak Vertical Center Nexsus 700D/40-II HS CNC Vertical Machining Center 2009
Have one to sell?
ConditionUsed
1 available
Table Size........................... 68.5” x 27.6"
X-Axis Stroke.............................. 60.2"
Y-Axis Stroke.............................. 27.6"
Z-Axis Stroke.............................. 25.6"
Spindle Face to Table Surface(Min/Max)..... 7.87"/33.46"
Maximum Table Weight Capacity.............. 4.410 LBS
Spindle Speed.............................. 18,000 RPM
Spindle Motor (15MIN/CONT.)................ 50/35 HP
Spindle Taper ............................. #40
Rapid Traverse (X,Y,Z)..................... 1181 IPM
Number of Tools............................ 30
Maximum Tool Diameter...................... 3.25"
Maximum Tool Diameter (Adjacent Pockets)... 4.92"
Maximum Tool Length........................ 13.78"
Maximum Tool Weight........................ 17.6 LBS.
Tool Select Method......................... RANDOM
Tool Change Time (Tool to Tool)............ 1.3 SEC
Power Supply (5 MIN/CONT).................. 58.9/47.7 kVA
Air Supply (71-128psi)...................... 10.59 cu-ft/min
Machine Height............................. 135.08"
Floor Space.......................... 137.2" X 161.4"
Machine Weight....................... 24250 LBS
Mazatrol Matrix Nexus Control
12.1” Color LCD
USB I/F (2-Port)
LAN Port in Electrical Cabinet
EIA/ISO Code Input Function
Add. EIA/ISO Functions (Req. EIA/ISO)
Mazacc-2D Software (Shpe Compensation)
Absloute Encoder Sys N/A With S/F-3AX
Manual Pulse Generator 1 (Detachable)
30 Tool Magazine
Coolers for Ball Screw XYZ Axes
Main Spindle Mtr 50HP
Spindle Speed 18,000 RPM (#40)
Relocation Device
Windows XP Op System for Mazak Machine
Mist Collector – Ryal FM-1200
Chip Conveyor Left Disp (Hinge / For Steel)
Signal Tower (3 Colors Lights)
**Dual Probing Kit with OMP400 & OTS, EIA Inspect
Synchrized Tapping
GOO Slope Constant
Mazacc-3D High-Speed Software Package
Shipae Compensation for Rotary Axes
High Smoothing Control
Hi-Press Coolant Thru Sys @ 213 PSI
Prep Only 1000 PSI Superflow Prep w/71 PSI Thru Spindle Coolant w/Flood
Max Program Size: 8MB
