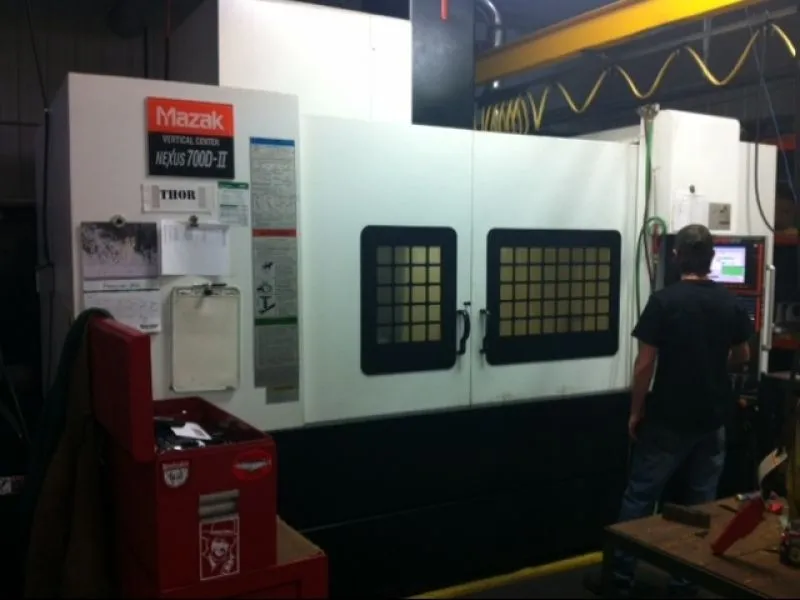

MAZAK VCN 700D/50 CNC VERTICAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
Table Size
68.5" x 27.5"
Table Load Capacity
4,409 lbs
Table Top to Spindle Nose
7.9" to 33.5"
X-Axis Travel
60.5"
Y-Axis Travel
27.5"
Z-Axis Travel
25.6"
Spindle Taper
CAT 50 BIG PLUS
Spindle Speed
6,000 RPM
Spindle Motor
30 HP
Maximum Spindle Torque
222.7 Ft./lbs
Tool Magazine Capacity
24 Position ATC
Maximum Tool Length/Weight
17.7" / 44 lbs.
Tool Change Time
1.3 Sec
Rapid Traverse Rates X, Y / Z
1,182 IPM / 790 IPM
Cutting Feed Rates
1182 IPM
Machine Dimensions LxWxH
142" x 118" x 102"
Machine Weight 27.400 LBS
MAZATROL MATRIX CNC Contro
Coolant Through Spindle (213 PSI)
Renishaw Probe (OMP-60)
Auto Tool Length Measure
Big Plus Spindle
CHIP CONVEYOR
