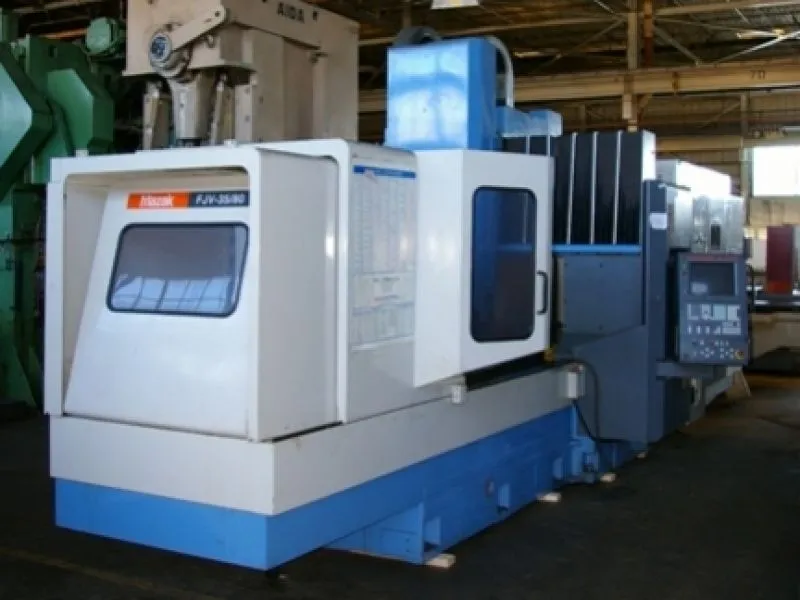

MAZAK FJV 35/80 CNC BRIDGE TYPE VMC 1998

TABLE SIZE -------------------------------- 30" X 88"

TABLE TRAVEL ---------- ( X AXIS ) -------- 78.74"

HEAD CROSS TRAVEL ----- ( Y AXIS ) -------- 31.49"

HEAD VERTICAL TRAVEL -- ( Z AXIS ) -------- 23"

DISTANCE SPINDLE NOSE TO TABLE TOP -------- 7.8" - 30.9"

DISTANCE BETWEEN COLUMNS ------------------ 34.65"

TABLE LOAD CAPACITY ----------------------- 6,510 LBS.

RAPID TRAVERSE RATE --- ( X AXIS ) -------- 1260 IPM

RAPID TRAVERSE RATE --- ( Y AXIS ) -------- 945 IPM

CUTTING FEED RATES ---- ( Z AXIS ) -------- TO 708 IPM

SPINDLE NOSE ------------------------------ CAT #50 TAPER

SPINDLE SPEED ----------------------------- TO 6,000 RPM

NUMBER OF RANGES -------------------------- 2

TOOL MAGAZINE ----------------------------- 40 ATC

MAIN DRIVE MOTOR -------------------------- 35 HP A.C.

APPROXIMATE MACHINE WEIGHT ---------------- 31,973 LBS

APPROXIMATE MACHINE DIMENSIONS ------------ 251"(LR) X 106"(FB) X 120"(H)
