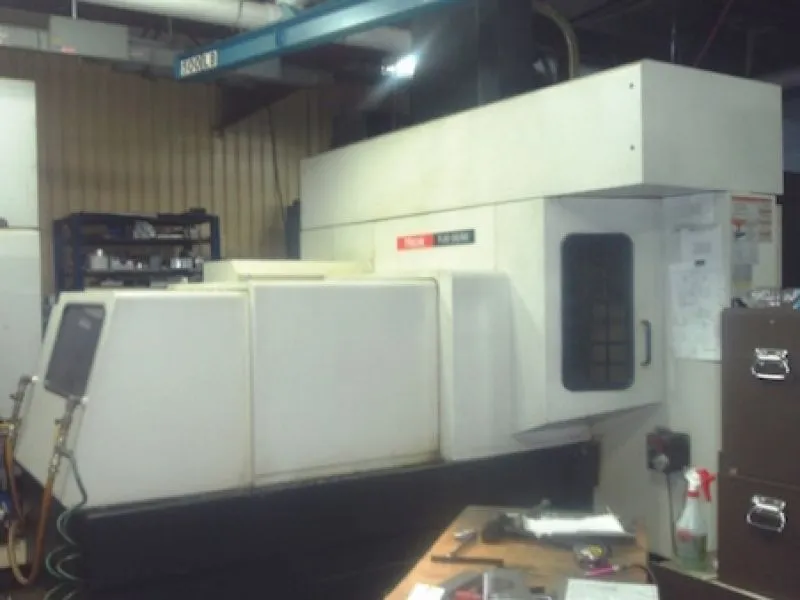

MAZAK FJV 35/60 VERTICAL MACHINING CENTER 2005

Table Size..............................................29.5 in. x 68.5 in.

Table Load Capacity...............................5500 Lbs.

X-Axis Travel..........................................59 in.

Y-Axis Travel..........................................31.50 in.

Z-Axis Travel..........................................23 in.

Distance From Spindle Nose to

Table Top.............................................7.97 in. - 30.91 in.

Distance Between Columns...................34.65 in.

Spindle Speed........................................10,000 RPM

Spindle Nose Configuration...................No. 50

Rapid Traverse Rates

X & Y Axis............................................1260 IPM

Z Axis...................................................708 IPM

Cutting Feedrate...................................0.04 - 708 IPM

Tool Magazine Capacity........................30

Tool Shank Configuration......................CAT # 50 Taper

Max. Tool Diameter...............................4.92 in.

When Adjacent Pocket Empty..............8.27 in.

Max. Tool Length ( From Gauge Line )....19.96 in.

Max. Tool Weight....................................44 Lbs.

Main Drive Motor………………..……............AC 30/ 35 HP

Floor Space requirements.......................116 in. x 203 in.
