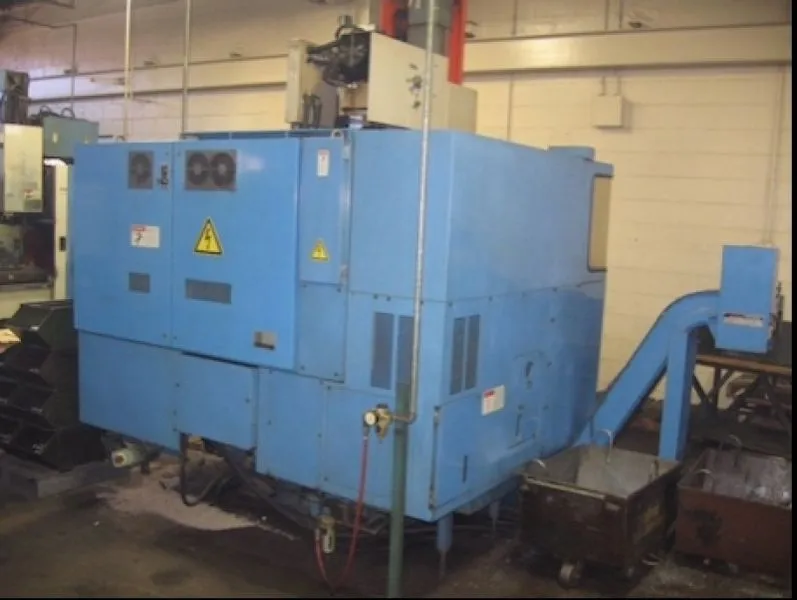

MAZAK AJV18N (2 qty) VERTICAL MACHINING CENTER - 1991

Pallet Shuttle 2 pallets

Table Size 16.14 in. x 35.43 in

Table Load Capacity 660 Lbs.

X-Axis Travel 22.05 in.

Y-Axis Travel 16.4 in.

Z-Axis Travel 15.75 in.

Distance from Spindle Nose to Table 5.91 in. - 21.65 in.

Distance Between Columns 18.9 in.

Spindle Speeds 100 - 10,000 RPM

Spindle Taper CAT No. 40

Rapid Traverse Rates

X Axis 1180 IPM

Y Axis 1180 IPM

Z Axis 708 IPM

Tool Magazine Capacity 30 Tools

Max Tool Diameter 3.94 in.

With Adjacent Pockets Empty 5.91 in.

Max Tool Length 9.84 in.

Max Tool Weight 17.6 Lbs.

Main Motor ( Cont./ 30 Minute ) AC 7.5 HP/ 12 HP

Machine Weight 9900 Lbs.
