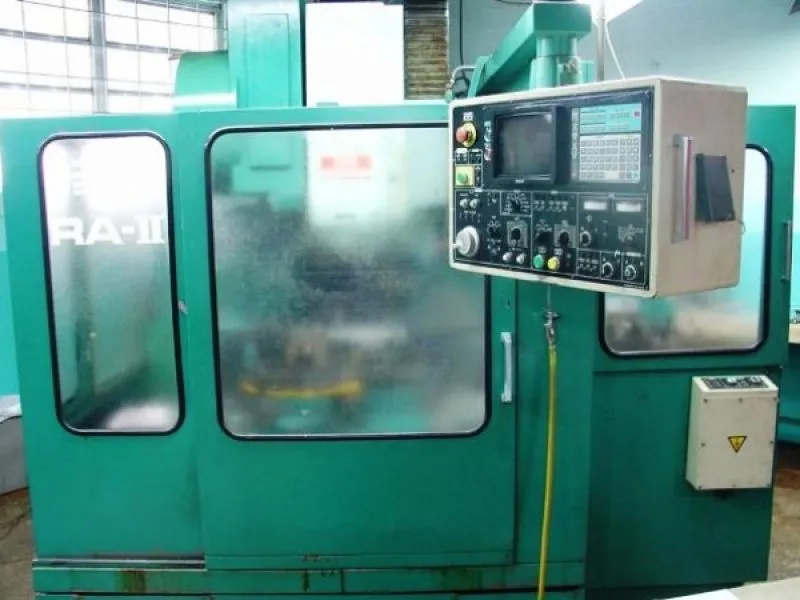

MATSUURA RA-II VMC 1989

Table Size / Number of Pallets:

23.6" x 14.9" / 2 Pallets

Table Load Capacity:

550 lbs

Pallet Change Time:

9 Seconds

Table Top to Spindle Nose:

5.9" - 24"

X-Axis Travel:

23.62"

Y-Axis Travel:

16.14"

Z-Axis Travel:

18.5"

Spindle Taper:

BT #40

Spindle Speed:

30 - 7,000 RPM - 2 Speed Geared

Spindle Motor 30 Min / Cont.:

10 HP / 7.5 HP

Tool Magazine Capacity:

20 Position Tool Changer

Tool Change Time:

1.8 seconds

Maximum Tool Diameter / Length / Weight:

5.9" / 11.8" / 17.6 lbs.

Rapid Traverse Rates (X,Y/Z):

590 IPM / 472 IPM

Cutting Feedrates:

197 IPM

Machine Dimensions:

146"x111"x106.5"

Machine Weight:

9,680 lbs.
