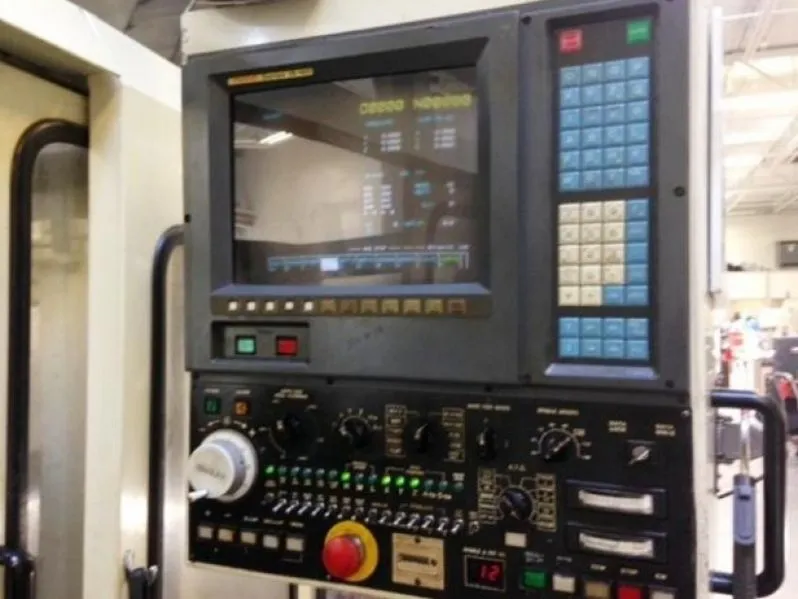

Kitamura Bridgecenter 8 Vertical Machining Center 1989

Table Work Area (W x L) 35.5” x 98.5”

T-Slot (W x L) 0.7086” x 3

Table Load Capacity 6,600 Lbs

Travel

Table Travel (x-axis) 80”

Cross Travel (y-axis) 42.7”

Vertical Travel (z-axis) 28”

Distance From Table Surface to Spindle Nose 9.9” – 37.9”

Spindle

Spindle Taper CAT-50

Spindle Speed 60 – 6,000 RPM

Feed

Rapid Feed (x and y-axis) 472.4 inch/min.

(z-axis) 393.7 inch/min.

Cutting Feed 0 – 197 inch/min.

ATC

Tool Storage Capacity 30 Tools

Tool Selection Method Random Tool Identifies at Magazine

Tool Shank Caterpillar no. 50

Max. Tool Size 5”

Max. Tool Weight (with tool holder) 33 Lbs

Tool Change Time 6.7 Seconds (60 Hz)

Chip to Chip (with tool orientation) 12 Seconds (60 Hz)

Spindle Motor

60~6,000 Rpm (30 min. Ratio) AC 25 HP

(Continuous Operation) AC 20 HP

Machine Weight (approx.) 37,400 Lbs

Machine Power 220V/60Hz/3 Phase
