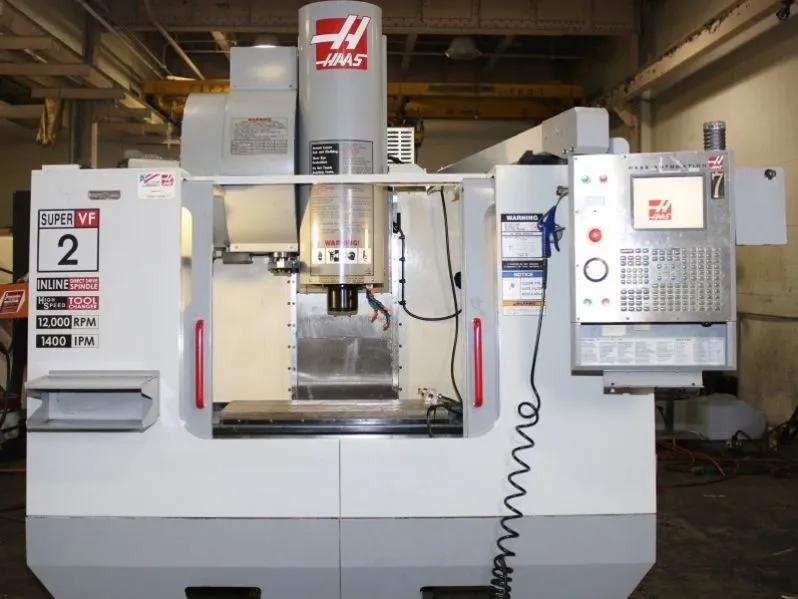

HAAS VF-2SS VERTICAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
X-AXIS TRAVEL .................... 30" 762mm
Y-AXIS TRAVEL .................... 16" 406mm
Z-AXIS TRAVEL .................... 20" 508mm
SPINDLE SPEED .................... 12,000 RPM
SPINDLE MOTOR .................... 30 HP
SPINDLE DRIVE .................... INLINE DIRECT DRIVE
SPINDLE TORQUE ................... 90 FT-LB @ 2000 RPM
SPINDLE TAPER .................... BT 40
TOOL MAGAZINE CAPACITY ........... 24 + 1 POS. ATC
MAXIMUM TOOL DIAMETER/WEIGHT ..... 3.0" / 12 LBS
RAPID TRAVERSE RATES ............. 1400 IPM
TABLE SIZE ....................….. 36" X 15"
TABLE LOAD CAPACITY .............. 1500 LBS
HAAS CONTROL
4/5 AXES DRIVE AND SOFTWARE
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM
HIGH SPEED MACHINING OPTION
RIGID TAPPING
VISUAL QUICK CODE
COOLANT SYSTEM
24+1 POSTION SIDE-MOUNT ATC
15" COLOR LCD MONITOR W/USB PORT
SPECIAL NOTE:
- TOTAL MACHINE HOURS ON: 22,066 HOURS
- MOTION HOURS: 7,690 HOURS
- SPINDLE HOURS ON: 7,397 HOURS
