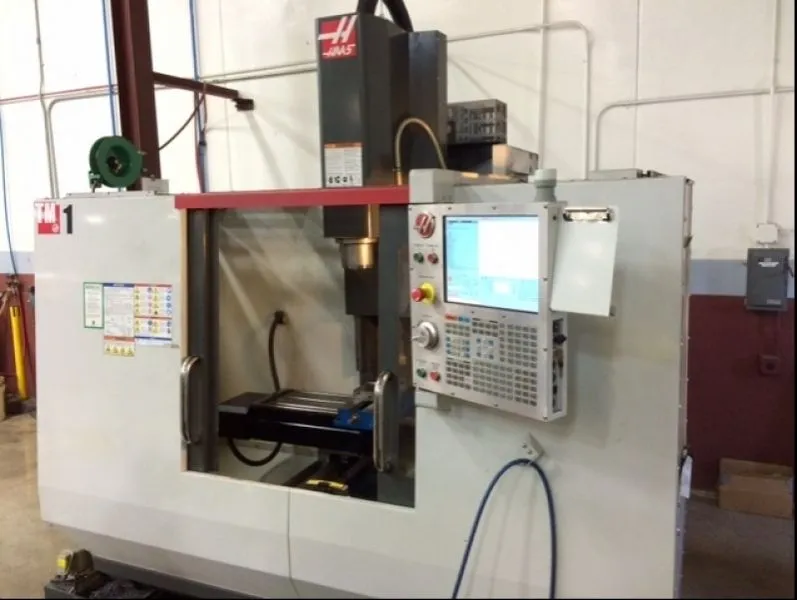

HAAS TM-1 VMC with 4th Axis Table

Travels

X Axis 30 "

Y Axis 12 "

Z Axis 16 "

Spindle Nose to Table (~ max) 20 "

Spindle Nose to Table (~ min) 4 "

TABLE

Length 47.75 "

Width 10.5 "

T-Slot Width 5/8 "

T-Slot Center Distance 4.00 "

Number of Std T-Slots 3

Max Weight on Table (evenly distributed) 1000 lb

SPINDLE

Max Rating 7.5 hp

Max Speed 4000 rpm

Max Torque 33 ft-lb @ 1200 rpm

Drive System Direct Speed Belt Drive

Taper CAT 40

Bearing Lubrication Grease packed

Cooling Air Cooled Air Cooled

FEEDRATES

Rapids on X 200 in/min

Rapids on Y 200 in/min

Rapids on Z 200 in/min

Max Cutting 200 in/min

AXIS MOTORS

Max Thrust X 2000 lb

Max Thrust Y 2000 lb

Max Thrust Z 2000 lb
