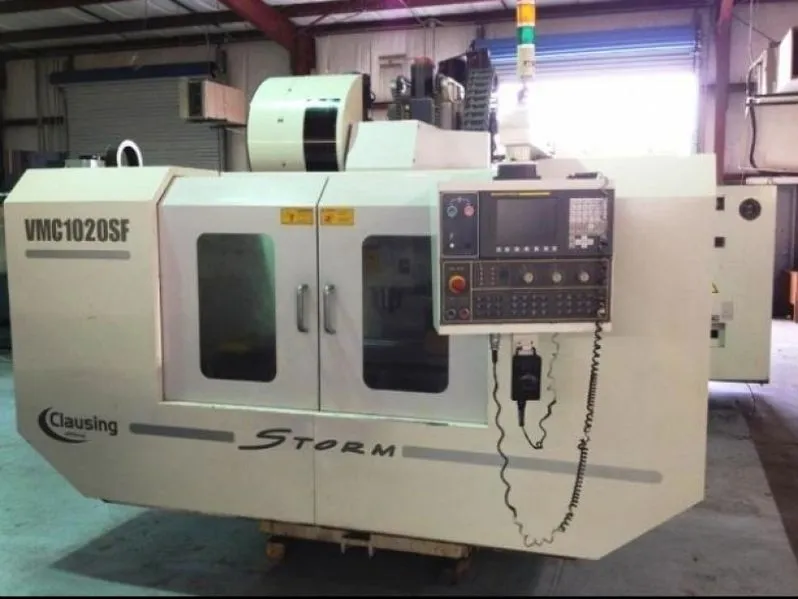

Clausing Storm 1020SF VMC 2005
Vertical Machining CentersX | 40.15" |
Y | 20" |
Z | 20" |
Power | 20 hp |
RPM | 10,000 RPM |
# ATC | 24 |
Table-W | 47.24" |
Table-L | 19.68" |
Dimensions | 117" x 101" x 98" |
Weight | 11,464 lbs. |
Table Size:
47.24" x 19.68"
Maximum Weight on Table:
2,200 lbs.
Table Top to Spindle Nose:
5.7" - 27.76"
X Axis Travel:
40.15"
Y Axis Travel:
20"
Z Axis Travel:
22"
Spindle Taper:
CAT # 40
Spindle Speeds:
80 - 10,000 RPM
Spindle Motor:
20 HP
Number of Positions ATC:
24 Station Side Mounted ATC
Maximum Tool Diameter/Length/Weight:
7.08" / 11.81" / 17.6 lbs
Rapid Traverse Rates:
945 IPM
Cutting Feed Rates:
393 IPM
Machine Dimensions:
117" x 101" x 98"
Machine Weight:
11,464 lbs.
Side Mounted Tool Changer with Swing Arm
10,000 RPM Spindle
Spindle Chiller Unit
Rigid Tapping
Chip Auger Conveyor
3 Color Status Condition Lights
Remote Jog Handle
PCMCIA Card Interface
User Macro
Graphic Function
Flood Coolant System
RS-232 Port Interface
All Boxed Way Design
Compare new at twice the price
