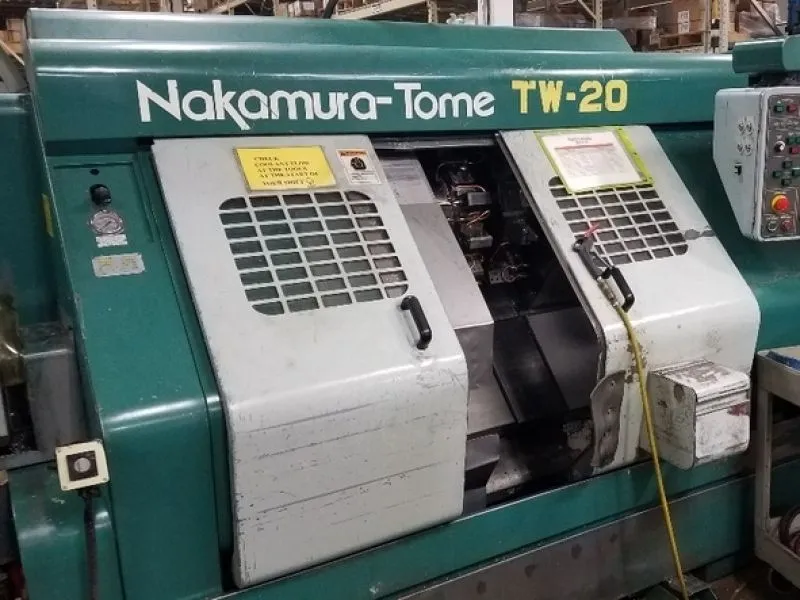

Nakamura Tome TW-20MM 6-Axis CNC Turning Center

Number of Spindles ..................... 2 (Opposed)

Maximum Swing Over Saddle .............. 8.66"

Maximum Turning Diameter ............... 6.50"

Maximum Turning Length ................. 7.87"

Max Collet Capacity, Left / Right ...... 2" / 1-5/8"

Hole Through Spindle, Left Unit ........ 2.44"

Hole Through Spindle, Right Unit ....... 2.05"

Spindle Nose to Turret Face ............ 3.94"-13.39"

Spindle Speeds (Stepless) .............. 50-5000 RPM

Spindle Motor, Left Unit ............... 10 HP / 7.5 HP

Spindle Motor, Right Unit .............. 7.5 HP / 5 HP

Spindle Nose ........................... A2-5

X-Axis Travel .......................... 6.89"

Z-Axis Travel, Left / Right ............ 9.45" / 26.77"

Rapid Traverse, X-Axis ................. 472 IPM

Rapid Traverse, Z-Axis ................. 945 IPM

Approx. Dims. w/oChip Conveyor.......... 122" x 68.7" x 74"

Weight ................................. 12,100 LBS.
