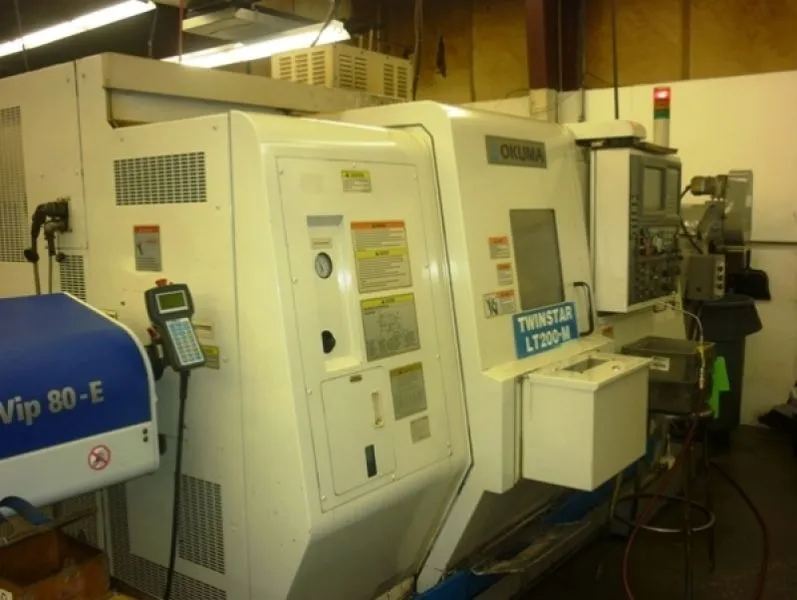

OKUMA LT-200M 2005

Swing Over Saddle...................15.75"
Max. Distance Between Spindle Nose..37.80"
Max. Turning Diameter...............8.27"
Max. Machining Length...............21.26"
Spindle Nose (Main/Sub).............A2-6/A2-6
Bore Diameter.......................2.44"
Bar Work Capacity...................2.2"
Range of Spindle (Main & Sub).......4500 RPM
C-Axis Indexing (Main & Sub)........001 Degree
Cross Slide Travel
XA-Axis.............................7.56"
AB-Axis.............................7.56"
Longitudinal Travel
ZA-Axis.............................27.56"
AB-Axis............................ 27.56"
W-Axis (Sub Spindle)............... 28.74"
Turret No. 1........................V 12
Turret No. 2........................V 12
Spindle Drive Motor (Main & Sub)... 16 HP
Rotary Tool Spindle Speed...........6000 RPM
Rotary Tool Horse Power.............5.6 HP
