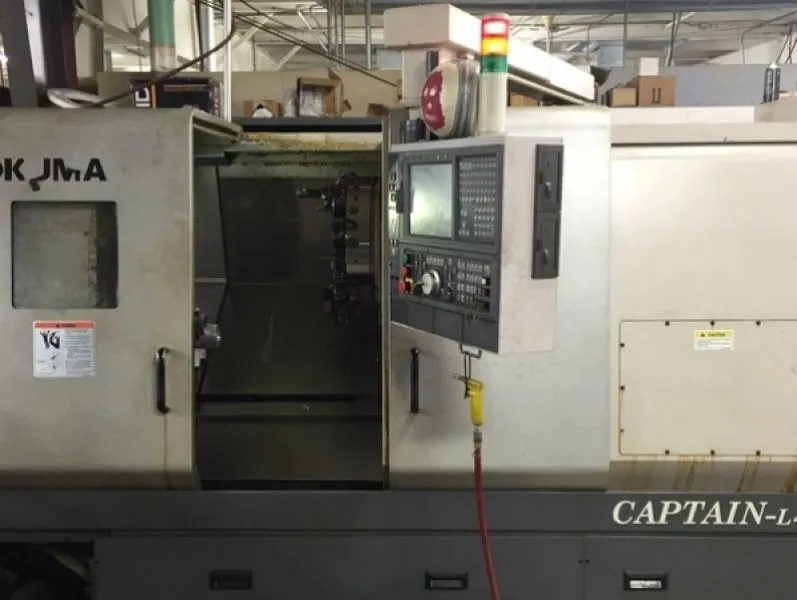

OKUMA CAPTAIN L470M/1250 - 3 -AXIS CNC LATHE

SWING OVER BED: ................24.41"
SWING OVER SADDLE: .........16.54"
MAX. TURNING LENGTH: ......49.2"
SPINDLE TAPER: ....................A2-11"
BORE DIAMETER: ...................4.33"
TYPE AND NO OF TOOL STATIONS: ..VERT 12
C - AXIS TRAVEL MAIN / SUB: ...........001
ROTARY TOOL SPINDLE SPEED: .....3000
ROTARY TOOL HORSEPOWER: ........7.5 HP
MAIN SPINDLE DRIVE MOTOR: .........30 HP
DIAMETER OF QUILL (TAIL STOCK):. 3.54"
QUILL STROKE: ..........................4.72"
QUILL CENTER: ..........................MT #5
WEIGHT: .....................................14,800 LBS.
