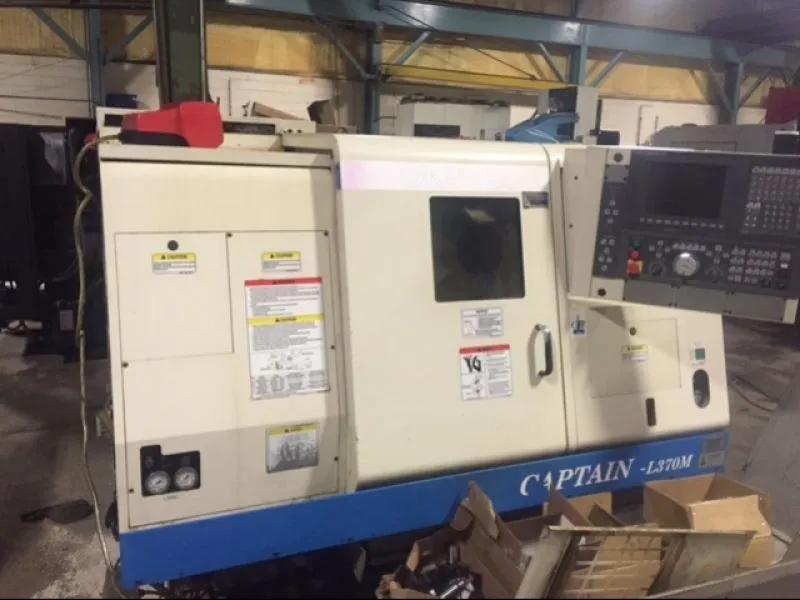

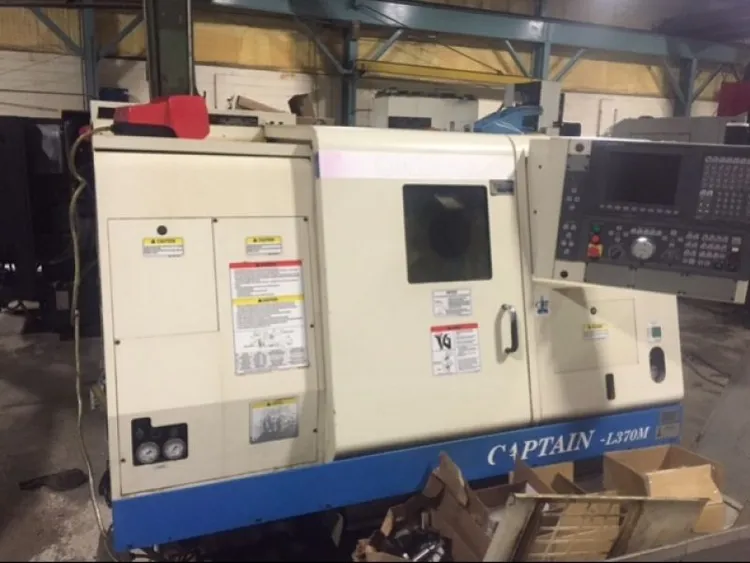

OKUMA CAPTAIN L370M (3-Axis) TURNING CENTER
Have one to sell?
ConditionUsed
1 available
Max Swing Over Bed................... 20.08"
Maximum Turning Diameter....... 13.38"
Maximum Turning Length.......... 20.47
Cross Travel (X-Axis)................... 10.23"
Longitudinal Travel (Z-Axis)....... 20.47"
Feed Range (Infinitely Variable)..... 1-400
Rapid Traverse Rate (X-Axis).......... 787 IPM
Rapid Traverse Rate (Y-Axis).......... 984 IPM
Number of Turrets...................... 1
Tool Positions............................. 12 All Live
Size Of OD Tool........................... VDI 40 1” square
Live Tool Power.......................... 9.4 HP
Spindle Bore................................ 2.44"
Spindle Nose............................... A2-6
Spindle Speed Range (1 RPM Increments)...... 38-3800 RPM
Spindle Horsepower............................ 20 HP
Approximate Machine Dimensions.... 87" x 68"
Approximate Machine Height............. 69"
Approximate Machine Weight............. 11,500 LBS
Okuma E100L CNC Control
High Pressure Coolant (Chip Blaster)
RS-232 Port
Swing Down Toll Setter
320 meters Memory
HI G Control
Tool Life Management
One Touch IGF
Chip Conveyor
8" 3-Jaw Kitagawa Chuck
Programmable Tailstock,
Auto Backlash Compensation
