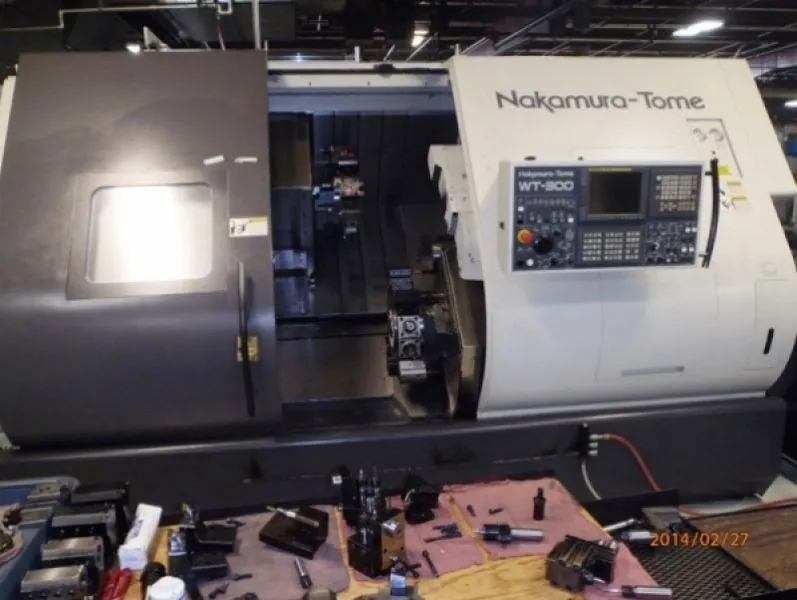

Nakamura-Tome WT-300MMY CNC Turning Center 2008

Swing Over Slides 10.63”

Maximum turning diameter: 10.63"

Maximum turning length: 30.71"

L&R Spindles Speeds 4500 RPM

L&R Spindle Nose A2-6

L&R Hole Through Draw Tube 2.598”

L&R Spindle Bore 3.15”

C-Axis Least Input / Command Increment .001 Deg

C-Axis Rotation Speed 600 IPM

Turret Type (Upper / Lower) Dodecagonal / Dodecagonal

Turret No. of Tool Stations Upper: 24 / Lower: 24

No. of Rotation Tool Stations Upper: 12 / Lower: 12

Rotating Tool Speeds 3600 RPM

Slide Travel X1 / X2 Axes 7.68”

Slide Travel Z1 / Z2 Axes 30.71”

Slide Travel B2 Axis 33.46”

Slide Travel Y Axis 2.36”

Rapid Traverse X1 / X2 Axes 630 IPM

Rapid Traverse Z1 / Z2 Axes 1063 IPM

Rapid Traverse B2 Axis 1063 IPM

Rapid Traverse Y Axis 236 IPM

Spindle Motors L,R: 20/15 HP

Rotation Tool Motors 7.5 / 5 HP

Machine Weight 26,400 lbs
