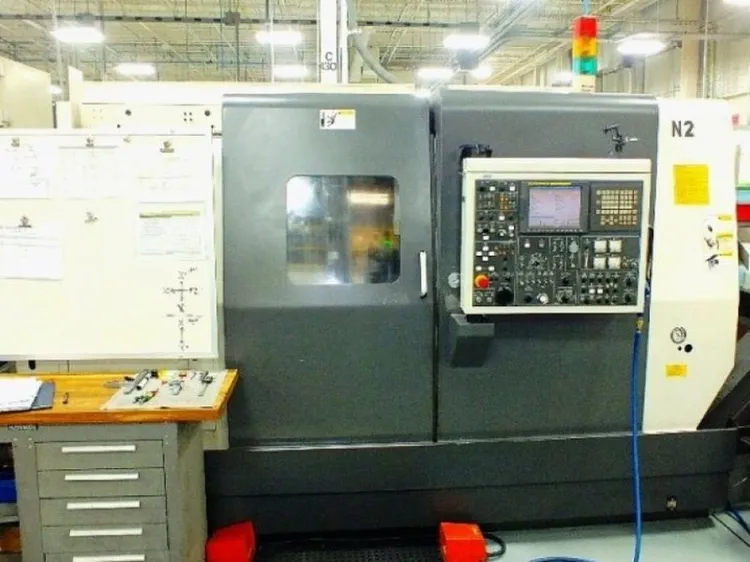

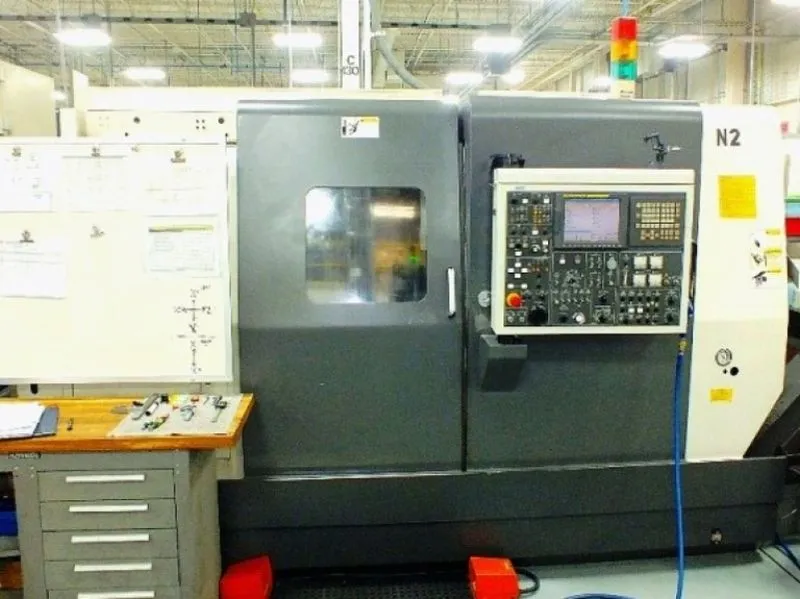

NAKAMURA-TOME WT-250 MULTI-AXIS CNC TURNING CENTER 2006
Have one to sell?
ConditionUsed
1 available
SWING OVER BED ...................... 9.84"
SWING OVER CARRIAGE ................. 9.84"
MAX. TURNING LENGTH ................. 21.85"
MAX. BAR CAPACITY, LEFT SPINDLE ..... 2.56"
MAX. BAR CAPACITY, RIGHT SPINDLE .... 2.5"
AXIS TRAVEL, X1 & X2 ................ 7.68"
AXIS TRAVEL, Z1 & Z2 ................ 23.62"
SPINDLE SPEED, LEFT ................. 4500 RPM
SPINDLE NOSE ........................ A2-6
HOLE THRU SPINDLE ................... 3.15"
SPINDLE SPEED, RIGHT ................ 4500 RPM
SPINDLE NOSE ........................ A2-5
HOLE THRU SPINDLE ................... 2.48"
C-AXIS INDEXING, BOTH SPINDLES ...... 0.001 DEGREE
NUMBER OF TURRET HEADS .............. 2
TURRET HEAD TYPE .................... DODECAGON
NO. OF TOOL STATIONS ................ 12
TOOL SIZE ........................... 1"
ID TURNING TOOL ..................... 1.26"
ROTARY TOOL SPINDLE SPEED ........... 30 TO 3600 RPM
SPINDLE DRIVE MOTOR, LEFT ........... 25/20 HP
SPINDLE DRIVE MOTOR, RIGHT .......... 15/10 HP
ROTARY TOOL DRIVE MOTOR ............. 7.5/5 HP
APPROX. MACHINE WEIGHT .............. 18,000 LBS
- FANUC 18iTB CNC CONTROL
- COLLET CHUCKS ON LEFT AND RIGHT SPINDLES
- 12 STATION UPPER AND 12 STATION LOWER TURRETS
- C-AXIS CONTROL FUNCTION FOR BOTH SPINDLES
- PARTS CONVEYOR
- CHIP CONVEYOR
- HIGH PRESSURE COOLANT BOTH SPINDLES
- (1) ROTARY TOOLHOLDER
- ALL AVAILABLE STATIC TOOLHOLDERS
- ALL AVAILABLE MANUALS
